Application: Used to secure hydraulic fittings and prevent loosening under vibration or pressure
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Quality Assurance: Produced under ISO 9001-certified manufacturing
Description

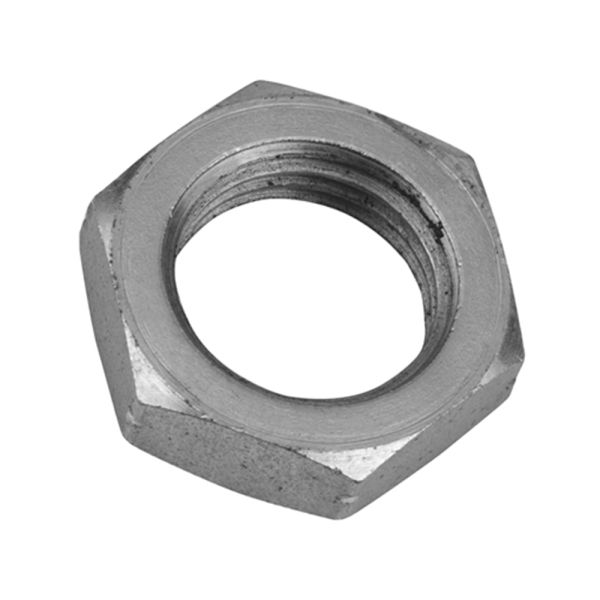

This metric locknut is designed to securely fasten hydraulic fittings, preventing loosening caused by vibration or high-pressure conditions. Featuring a 1.5mm pitch metric thread, it is manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards. This locknut provides reliable performance and added safety for hydraulic assemblies in demanding applications.
Key Features & Benefits
Durable Construction: Made from mild steel for robust, long-lasting use
Metric Threading: 1.5mm pitch for compatibility with standard metric hydraulic fittings
Secure Locking: Prevents fittings from loosening during vibration and high-pressure operation
Standard Compliance: Produced to BS EN 10277 for dimensional accuracy
Versatile Application: Suitable for various hydraulic and pneumatic systems
Quality Manufacturing: ISO 9001-certified processes ensure consistent product reliability
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
Thread Size (mm)
O/L (")

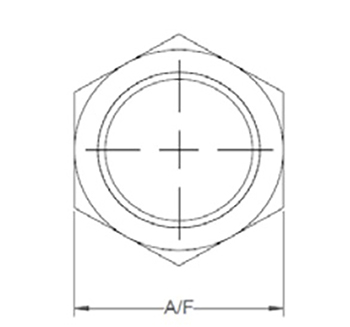

A/F (mm)
380466
MLN12
M12 x 1.5
0.25
17
380467
MLN14
M14 x 1.5
0.25
19
380468
MLN16
M16 x 1.5
0.25
22
380469
MLN18
M18 x 1.5
0.25
22
380470
MLN20
M20 x 1.5
0.25
27
380471
MLN22
M22 x 1.5
0.25
27
380472
MLN24
M24 x 1.5
0.25
32
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
