Temperature Range: -40°C to +120°C (no pressure reduction)
Quality Assurance: Produced under ISO 9001-certified manufacturing
Description
This metric crimp nut, manufactured by Burnett & Hillman from high-quality mild steel, features a 1.5mm pitch thread for compatibility with metric hydraulic fittings. It is designed for securely attaching hydraulic hoses to crimped fittings, ensuring strong, leak-free joints. Built to BS EN 10277 standards, this crimp nut offers durability, precise threading, and long-lasting performance in high-pressure hydraulic applications.
Key Features & Benefits
Durable Construction: Made from high-quality mild steel for strength and reliability
Metric Threading: 1.5mm pitch for compatibility with standard metric hydraulic fittings
Standard Compliance: Manufactured to BS EN 10277 for dimensional accuracy
Versatile Application: Suitable for a wide range of hydraulic hose assemblies
Quality Manufacturing: Produced under ISO 9001-certified processes for consistent product quality
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 (mm)
O/L (")

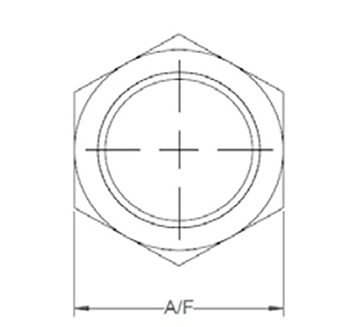

A/F (mm)
380505
708029
M10 x 1.5
0.53
14
380506
708049
M12 x 1.5
0.65
17
380507
708050
M14 x 1.5
0.673
19
380508
708051
M18 x 1.5
0.728
24
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
