Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified manufacturing
Description

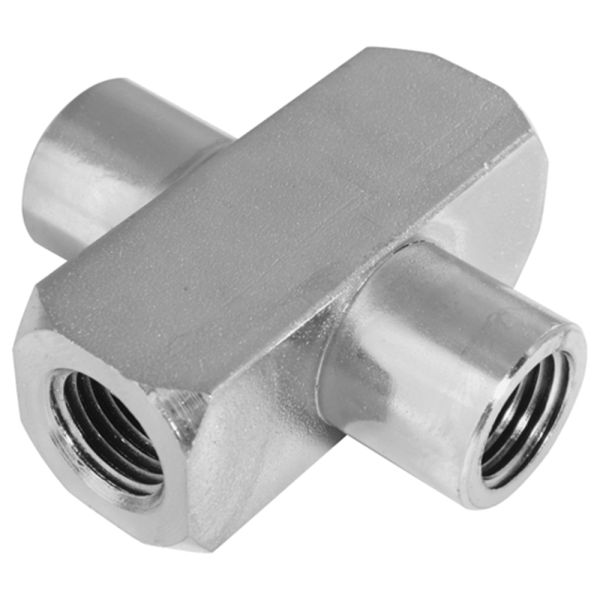

This 90° cross adaptor features four fixed female NPT connections, designed for creating multiple branch connections in hydraulic systems. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it ensures a secure, leak-free connection suitable for high-pressure hydraulic and pneumatic applications requiring an NPT thread configuration.
Key Features & Benefits
Durable Construction: Made from strong mild steel for long-term reliability
Thread Configuration: NPT fixed female x 4 for versatile hydraulic connections
90° Cross Design: Enables four-way system integration for complex fluid routing
Standard Compliance: Manufactured to BS EN 10277 for accuracy and compatibility
Versatile Application: Suitable for hydraulic and pneumatic systems using NPT fittings
Quality Manufacturing: ISO 9001-certified processes ensure consistent quality
Downloads
Burnett & Hillman Pressure Guide

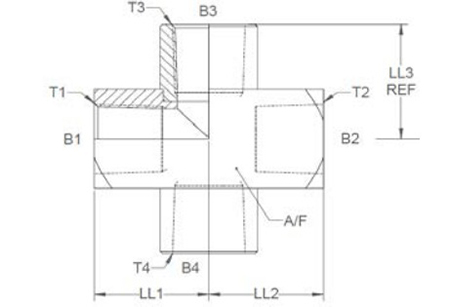

SKU
Product Code
T1 - T4 (")
B1 - B4 (")
LL1 - LL2 (")
LL3 (")
A/F (")
380439
37000
1/4
0.421
0.875
0.875
0.75
380440
37001
3/8
0.561
1
1.125
1
380441
37002
1/2
0.689
1.25
1.302
1.125
380442
37004
1
1.137
1.725
1.735
1.75
380443
37006
1 1/2
1.713
2.25
2.25
2.5
