Thread Type: BSPP (British Standard Parallel Pipe) Male
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing

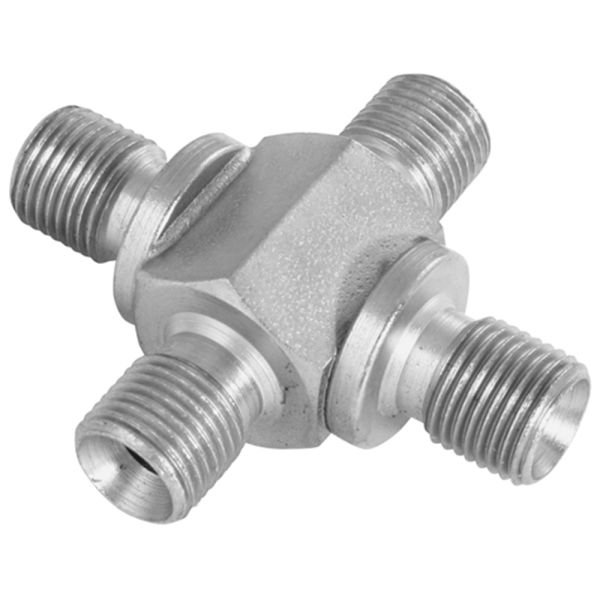

Description
This 90° cross adaptor features four BSPP male threads with a 60° cone design, specifically engineered for use with bonded seals to ensure a secure, leak-free connection. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it allows multiple hydraulic connections in a cross configuration, ideal for complex fluid routing in hydraulic and pneumatic systems.
Key Features & Benefits
Durable Construction: Made from robust mild steel for long-term reliability
Thread Configuration: BSPP male x 4 with 60° cone ends for bonded seal connections
Leak-Free Sealing: 60° cone with bonded seal ensures strong, pressure-tight joints
Standard Compliance: Produced to BS EN 10277 for precision and compatibility
Versatile Use: Suitable for high-pressure hydraulic and pneumatic systems
Quality Manufacturing: ISO 9001-certified production ensures consistent performance
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

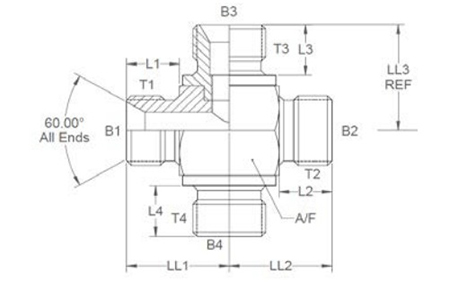

T1 - T4 (")
B1 - B4 (")
L1 - L4 (")
LL1 - LL2 (")
LL3 (")
A/F (mm)
380415
03007
1/8
0.137
0.44
0.77
0.816
14
380416
03000
1/4
0.25
0.45
0.88
0.934
19
380417
03001
3/8
0.312/0.296
0.52
1
1.078
22
380418
03002
1/2
0.437/0.39
0.6
1.162
1.256
27
380419
03003
5/8
0.562/0.437
0.7
1.32
1.425
30
380420
03004
3/4
0.625
0.75
1.48
1.53
32
380421
03005
1
0.875/0.75
0.8
1.7
1.767
41
380422
03006
1 1/4
1.125/0.875
0.8
1.925
1.969
50
