Thread Type: BSPP (British Standard Parallel Pipe) Fixed Female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

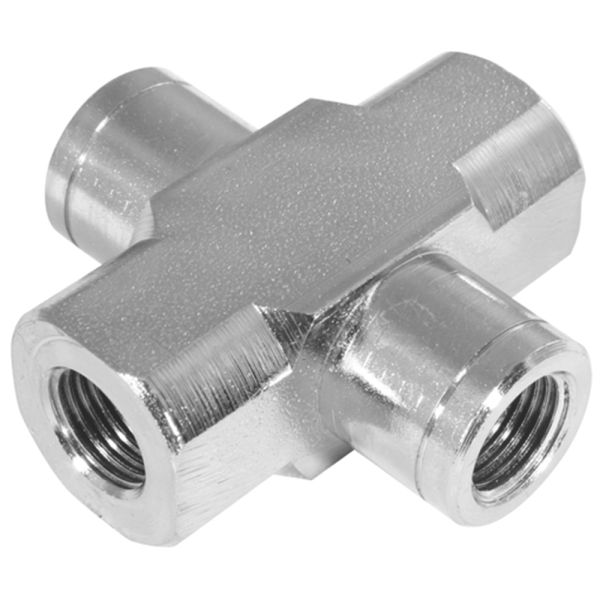

This 90° cross adaptor features four BSPP fixed female connections, designed to provide multiple fluid pathways in hydraulic systems. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it offers a strong, leak-free connection suitable for high-pressure applications and complex hydraulic routing requirements.
Key Features & Benefits
Durable Construction: Robust mild steel ensures strength and long-lasting performance
Thread Configuration: BSPP fixed female x 4 for versatile hydraulic connections
90° Cross Design: Allows four-way system integration for complex fluid routing
Standard Compliance: Produced to BS EN 10277 for accurate threading and compatibility
Versatile Application: Ideal for high-pressure hydraulic and pneumatic systems
Quality Manufacturing: ISO 9001-certified processes guarantee consistent quality
Downloads
Burnett & Hillman Pressure Guide

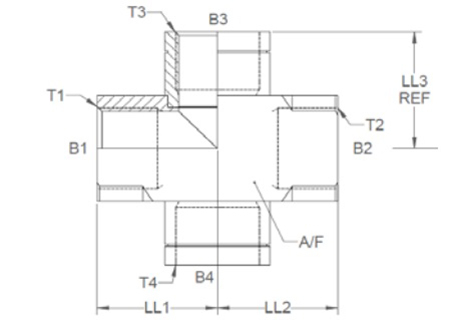

SKU
Product Code
T1 - T4 (")
B1 - B4 (")
LL1 - LL2 (")
LL3 (")
A/F (")
380423
13023
1/8
0.344
0.775
0.782
0.625
380424
13020
1/4
0.465
0.937
0.935
0.75
380425
13021
3/8
0.6
1.05
1.095
1
380426
13022
1/2
0.75
1.25
1.272
1.125
380427
13024
3/4
0.964
1.5
1.512
1.375
380428
13025
1
1.211
1.75
1.78
1.75
380429
13026
1 1/4
1.781
2.25
2.5
2.5
