Thread Type: NPT (National Pipe Taper) male x NPT female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

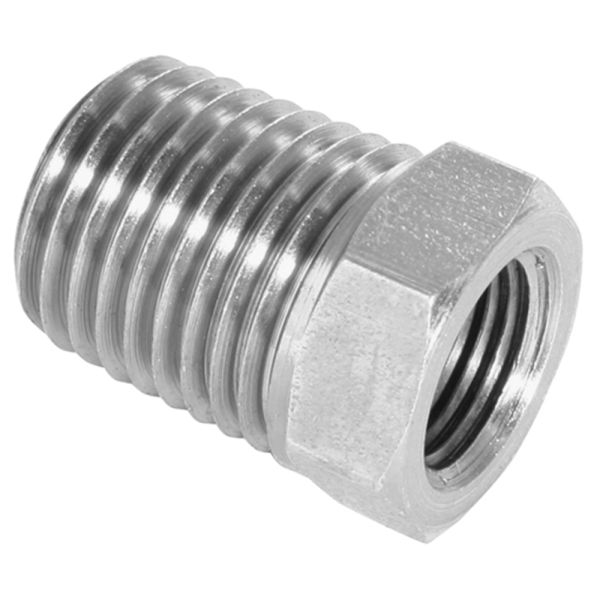

This NPT bush adaptor features a tapered NPT male-to-female threaded connection for joining hydraulic and pneumatic components. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides a strong, leak-free seal suitable for high-pressure applications requiring NPT threaded connections.
Key Features & Benfits
Durable Construction: Made from robust mild steel for long-lasting reliability
Thread Type: NPT male x NPT female bush for tapered thread connections
Secure Sealing: Tapered threads provide a reliable, pressure-tight joint
Versatile Use: Ideal for hydraulic and pneumatic systems requiring NPT fittings
Standard Compliance: Produced to BS EN 10277 for accurate threading
Quality Manufacturing: ISO 9001-certified production ensures consistent product performance
Downloads
Burnett & Hillman Pressure Guide

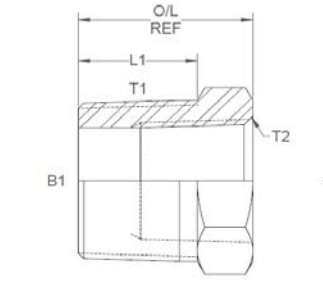

SKU
Product Code
Male Thread T1 (")
Female Thread T2 (")
B1 (")
L1 (")
O/L (")
A/F
379567
01001
1/4
1/8
0.34
0.56
0.76
0.562"
379568
01002
3/8
1/8
0.34
0.56
0.785
0.687"
379569
01003
3/8
1/4
0.437
0.56
0.785
0.687"
379570
01018
1/2
1/8
0.34
0.75
0.98
22mm
379571
01004
1/2
1/4
0.437
0.75
0.98
22mm
379572
01005
1/2
3/8
0.561
0.75
0.98
22mm
379573
01032
3/4
1/8
0.34
0.75
1.1
27mm
379574
01006
3/4
1/4
0.437
0.75
1.1
27mm
379575
01007
3/4
3/8
0.563
0.75
1.1
27mm
379576
01008
3/4
1/2
0.689
0.75
1.1
27mm
379577
01022
1
1/4
0.437
0.97
1.37
1.375"
379578
01011
1
3/8
0.563
0.97
1.37
1.375"
379579
01009
1
1/2
0.7
0.97
1.37
1.375"
379580
01010
1
3/4
0.896
0.97
1.37
1.375"
379581
01023
1 1/4
1/4
0.437
0.97
1.47
1.75"
379582
01025
1 1/4
3/8
0.563
0.97
1.47
46mm
379583
01026
1 1/4
1/2
0.689
0.97
1.47
1.75"
379584
01019
1 1/4
3/4
0.896
0.97
1.47
1.75"
379585
01012
1 1/4
1
1.122
0.97
1.47
1.75"
379586
01024
1 1/2
1/4
0.437
1
1.53
50mm
379587
01027
1 1/2
3/8
0.563
1
1.53
50mm
379588
01028
1 1/2
1/2
0.7
1
1.53
50mm
379589
01013
1 1/2
3/4
0.896
1
1.53
50mm
379590
01015
1 1/2
1
1.122
1
1.53
50mm
379591
01021
1 1/2
1 1/4
1.476
1
1.53
50mm
379592
01031
2
1/4
0.437
1.03
1.73
65mm
379593
01030
2
1/2
0.689
1.03
1.73
65mm
379594
01029
2
3/4
0.896
1.03
1.73
65mm
379595
01014
2
1
1.122
1.03
1.73
65mm
379596
01017
2
1 1/4
1.476
1.03
1.73
65mm
379597
01016
2
1 1/2
1.712
1.03
1.73
65mm
379598
01033
2 1/2
2
2.165
1.52
2.16
3.25"
