Thread Type: Tapered NPT male x parallel BSPP female bush
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description
This adaptor features an NPT male thread and a BSPP fixed female bush, allowing connection between tapered and parallel threaded components. Manufactured by Burnett & Hillman in high-quality mild steel to BS EN 10277 standards, it provides a secure and leak-free joint for use in hydraulic and pneumatic applications requiring NPT to BSPP transitions.
Key Features & Benefits
Durable Construction: Made from robust mild steel for dependable use
Mixed Thread Compatibility: Connects NPT male to BSPP female components
Leak-Resistant Design: Tapered NPT thread offers secure sealing under pressure
Versatile Application: Ideal for mixed hydraulic systems using NPT and BSPP threads
Standard Compliance: Manufactured to BS EN 10277 for precise fit and thread engagement
Quality Manufacturing: ISO 9001-certified production ensures consistent product quality
Downloads
Burnett & Hillman Pressure Guide

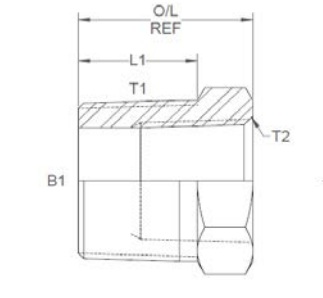

SKU
Product Code
Male Thread T1 (")
Female Thread T2 (")
B1 (")
L1 (")
O/L (")
A/F
379557
16350
1/4
1/8
0.344
0.56
0.76
0.562"
379558
16351
3/8
1/4
0.465
0.56
0.79
0.687"
379559
16352
1/2
1/4
0.465
0.75
0.99
22mm
379560
16354
3/4
1/4
0.465
0.75
1.1
27mm
379561
16355
3/4
3/8
0.6
0.75
1.1
27mm
379562
16356
3/4
1/2
0.75
0.75
1.1
27mm
379563
16359
1
1/2
0.75
0.97
1.37
1.375"
379564
16360
1
3/4
0.965
0.97
1.37
1.375"
379565
16365
2
1
1.211
1.03
1.73
65mm
