Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

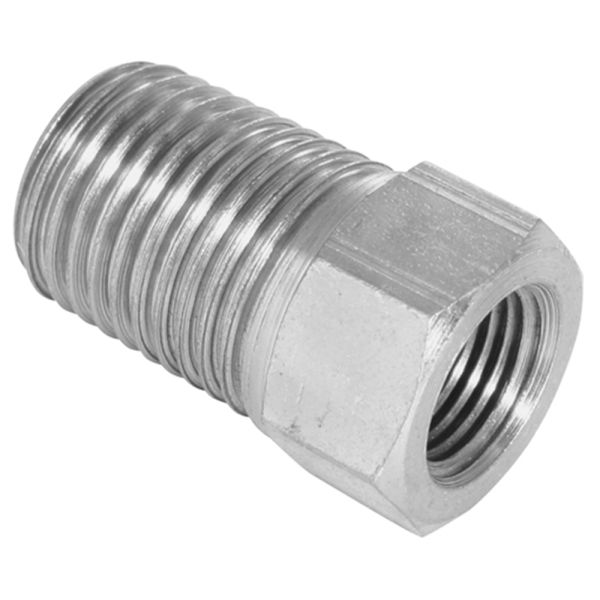

This BSPT bush adaptor features a BSPT male-to-female threaded connection, designed for securely joining tapered pipe fittings. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it ensures a robust, pressure-tight joint suitable for hydraulic and pneumatic applications requiring tapered thread compatibility.
Key Features & Benefits
Durable Construction: Made from strong mild steel for long-lasting use
Thread Type: BSPT male x BSPT female bush for tapered pipe connections
Secure Sealing: Tapered threads provide a tight, leak-resistant joint
Versatile Use: Suitable for hydraulic and pneumatic systems requiring BSPT fittings
Standard Compliance: Manufactured to BS EN 10277 for precision threading
Quality Manufacturing: Produced under ISO 9001-certified processes for consistent product reliability
Downloads
Burnett & Hillman Pressure Guide

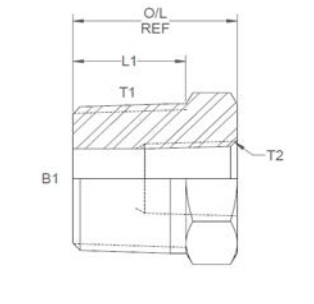

SKU
Product Code
Male Thread T1 (")
Female Thread T2 (")
B1 (")
L1 (")
O/L (")

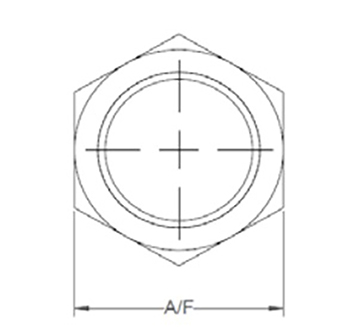

A/F
379548
16180
1/4
1/8
0.33
0.58
0.9
0.562"
379549
16181
3/8
1/8
0.315
0.59
0.91
0.687"
379550
16182
3/8
1/4
0.44
0.59
0.91
0.687"
379551
16183
1/2
1/4
0.44
0.77
1.09
22mm
379552
16184
1/2
3/8
0.561
0.77
1.09
22mm
379553
16186
3/4
3/8
0.561
0.77
1.15
27mm
379554
16187
3/4
1/2
0.698
0.77
1.15
27mm
379555
16190
1
1/2
0.698
0.99
1.49
1.375"
379556
16191
1
3/4
0.935
1.08
1.48
1.375"
