Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description
This BSPT-to-BSPP bush adaptor features a tapered BSPT male thread and a parallel BSPP female thread, designed for connecting components with differing thread standards. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides a strong, leak-free connection ideal for hydraulic and pneumatic systems requiring mixed BSP thread compatibility.
Key Features & Benefits
Durable Construction: High-quality mild steel for strength and longevity
Thread Type: BSPT male x BSPP female bush for mixed-thread connections
Leak-Proof Design: Tapered BSPT male thread ensures a secure, pressure-tight seal
Versatile Use: Enables connection between BSPT and BSPP threaded components
Standard Compliance: Manufactured to BS EN 10277 for precision and accuracy
Quality Manufacturing: ISO 9001-certified production ensures consistent reliability
Downloads
Burnett & Hillman Pressure Guide

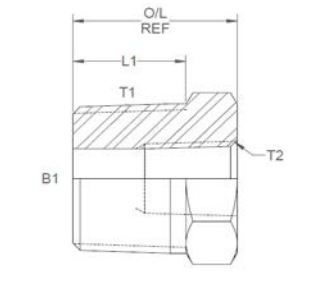

SKU
Product Code
Male Thread T1 (")
Female Thread T2 (")
B1 (")
L1 (")
O/L (")
A/F
379512
16121
3/8
1/8
0.344
0.59
0.91
0.687"
379513
16122
3/8
1/4
0.465
0.59
0.91
0.687"
379514
16125
1/2
1/4
0.465
0.76
1.14
22mm
379515
16123
3/4
1/4
0.465
0.77
1.12
27mm
379516
16124
3/4
3/8
0.6
0.77
1.12
27mm
379517
16137
3/4
1/2
0.75
0.77
1.12
27mm
379518
16126
1
1/4
0.465
0.99
1.49
1.375"
379519
16117
1
3/8
0.6
0.99
1.49
1.375"
379520
16127
1
1/2
0.75
0.99
1.49
1.375"
379521
16128
1
3/4
0.965
0.99
1.49
1.375"
379522
16136
1 1/4
1
1.211
1
1.5
1.75"
379523
16142
1 1/2
1/2
0.75
1.17
1.72
50mm
