Thread Type: BSPP (British Standard Parallel Pipe) Not Coned
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: Produced under ISO 9001-certified processes
Description

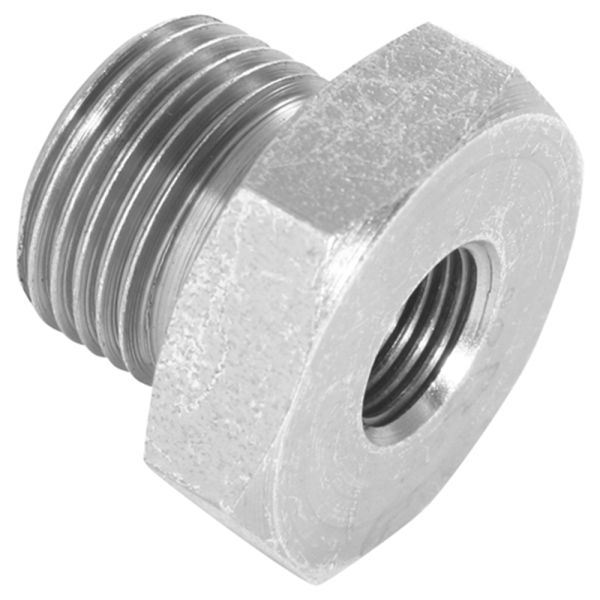

This BSPP bush adaptor features a male and female BSPP connection, both non-coned, for joining components with matching parallel threads. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it offers a reliable and robust solution for hydraulic and pneumatic applications where a 60° cone seal is not required.
Thread Type: BSPP male x BSPP fixed female bush with non-coned design
Versatile Use: Ideal for applications not requiring 60° cone sealing
Reliable Connection: Provides a secure joint between BSPP threaded components
Standard Compliance: Manufactured to BS EN 10277 for precision threading
Quality Manufacturing: ISO 9001-certified production ensures consistent reliability
Downloads
Burnett & Hillman Pressure Guide

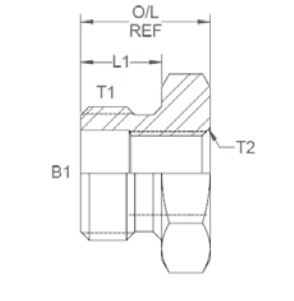

SKU
Product Code
Male Thread T1 (")
Female Thread T2 (")
B1 (")
L1 (")
O/L (")
A/F (mm)
379524
00780
3/8
1/8
0.345
0.45
0.73
22
379525
00781
1/2
1/8
0.41
0.5
0.8
1.01"
379526
00782
1/2
1/4
0.53
0.5
0.8
27
379527
00783
5/8
1/4
0.464
0.55
0.91
30
379528
00784
5/8
3/8
0.6
0.55
0.91
30
379529
00785
3/4
1/8
0.393
0.54
0.9
32
379530
00786
3/4
1/4
0.53
0.54
0.9
32
379531
00787
3/4
3/8
0.68
0.54
0.9
32
379532
00788
1
1/4
0.464
0.64
1.04
41
379533
00789
1
3/8
0.68
0.64
1.04
1.67"
379534
00790
1
1/2
1.67
0.64
1.04
41
379535
00791
1
5/8
0.828
0.64
1.04
41
379536
00792
1 1/4
1/4
0.464
0.75
1.2
50
379537
00793
1 1/4
3/8
0.6
0.75
1.2
50
379538
00794
1 1/4
1/2
0.75
0.75
1.2
50
379539
00795
1 1/4
3/4
0.964
0.75
1.2
50
379540
00796
1 1/4
1
1.21
0.75
1.2
50
379541
00802
1 1/2
1
1.21
0.75
1.3
55
379542
00805
2
1/2
0.75
1
1.7
70
379543
00806
2
5/8
0.828
1
1.7
70
379544
00807
2
3/4
0.964
1
1.7
70
379545
00808
2
1
1.21
1
1.7
70
379546
00809
2
1 1/4
1.555
1
1.7
70
379547
00810
2
1 1/2
1.781
1
1.7
70
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
