Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

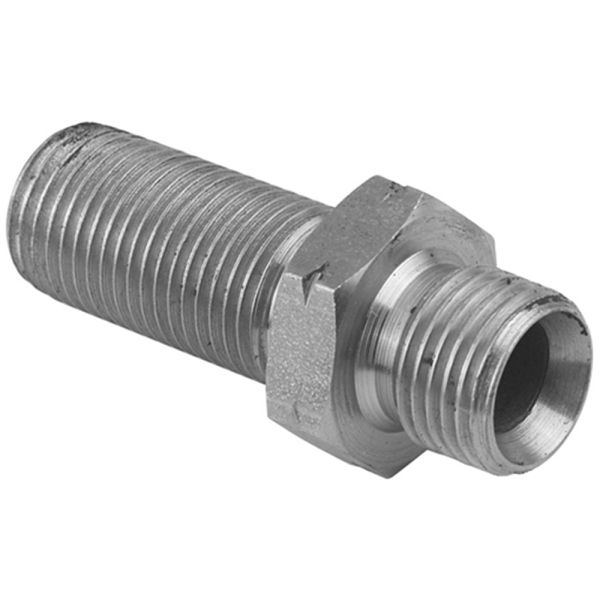

This metric male-to-male adaptor with a 1.5mm pitch thread is designed for connecting hydraulic components in high-pressure systems. Supplied without a locknut, it is manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards. The precision metric threading ensures a strong, reliable connection suitable for a wide range of hydraulic and pneumatic applications.
Key Features & Benefits
Durable Construction: Made from robust mild steel for long-lasting performance
Thread Configuration: Metric male x male with 1.5mm pitch for precise fitment
Locknut-Free Design: Provides flexibility for integration with existing assemblies
Versatile Use: Ideal for hydraulic and pneumatic systems requiring metric connections
Standard Compliance: Manufactured to BS EN 10277 for dimensional accuracy
Quality Manufacturing: Produced under ISO 9001-certified processes for consistent reliability
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

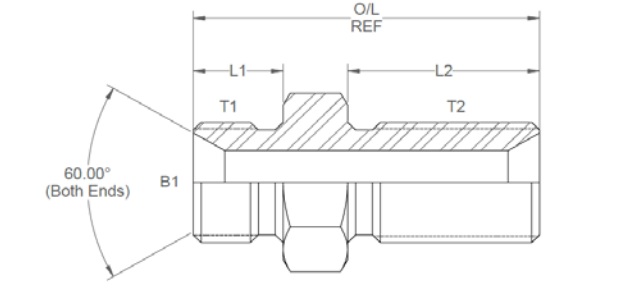

T1 & T2 (mm)
B1 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
380281
8MP1212
12
0.197
0.49
1.27
1.96
17
380282
8MP1616
16
0.375
0.52
1.27
2.06
22
380283
8MP1818
18
0.437
0.52
1.28
2.07
24
380284
8MP2020
20
0.5
0.52
1.28
2.07
27
380285
8MP2222
22
0.562
0.54
1.29
2.2
27
380286
8MP2424
24
0.64
0.64
1.29
2.25
32
