Thread Type: JIC (Joint Industry Council) male x male
Locknut: Supplied with locknut for secure installation
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

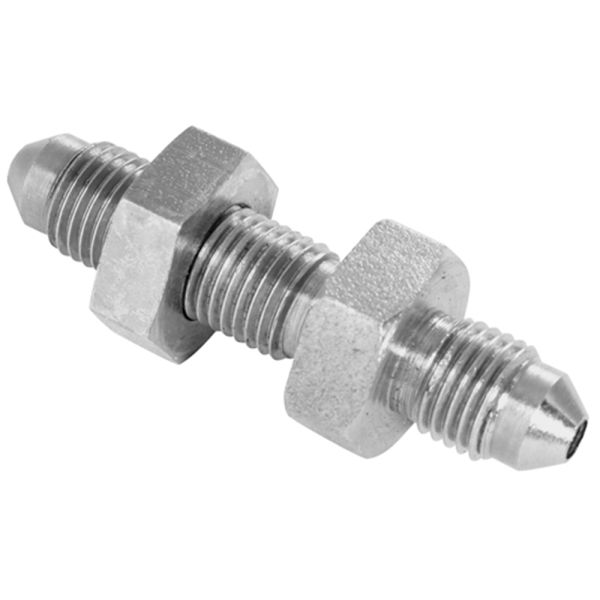

This JIC male-to-male adaptor with a 37° cone sealing face comes with a locknut for enhanced connection security. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it provides a robust, leak-free hydraulic connection. The included locknut ensures the fitting remains firmly in place under vibration and high-pressure conditions, making it ideal for demanding hydraulic and pneumatic applications.
Key Features & Benefits
Durable Construction: High-quality mild steel for long-lasting reliability
Thread Type: JIC male x male with 37° cone for strong metal-to-metal sealing
Locknut Included: Prevents loosening during operation and vibration
Versatile Application: Suitable for high-pressure hydraulic and pneumatic systems
Standard Compliance: Produced to BS EN 10277 for dimensional accuracy
Quality Manufacturing: ISO 9001-certified production ensures consistent product performance
Downloads
Burnett & Hillman Pressure Guide

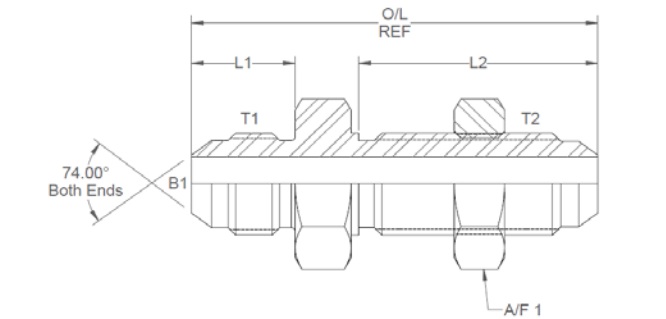

SKU
Product Code
T1 & T2 (")
B1 (")
L1 (")
L2 (")
O/L (")
A/F (")
A/F1 (")
381159
00236
3/8
0.125
0.479
1.1
1.9
0.625
0.625
381160
00225
7/16
0.172
0.55
1.2
2.07
0.687
0.687
381161
00226
1/2
0.234
0.55
1.2
2.07
19mm
0.75
381162
00227
9/16
0.297
0.556
1.28
2.18
0.812
0.812
381163
00228
3/4
0.391
0.657
1.44
2.44
1
1
381164
00229
7/8
0.484
0.758
1.58
2.74
1.125
1.125
381165
00230
1 1/16
0.609
0.864
1.75
3.09
1.375
1.375
381166
00234
1 3/16
0.719
0.89
1.75
3.12
1.5
1.375
381167
00231
1 5/16
0.844
0.911
1.75
3.14
41mm
41mm
381168
00232
1 5/8
1.078
0.958
1.8
3.31
1.875
1.875
381169
00233
1 7/8
1.312
1.083
1.81
3.52
55mm
55mm
