Thread Type: Extended BSPP (British Standard Parallel Pipe) male x male
Locknut: Supplied with locknut for secure installation
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

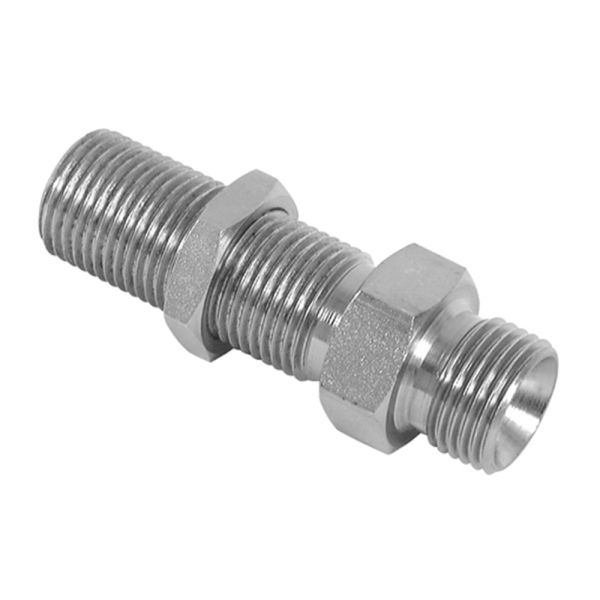

This extended BSPP male-to-male adaptor with a 60° cone sealing face is supplied with a locknut, providing a secure, vibration-resistant hydraulic connection. The extended body design allows for greater installation flexibility, particularly in systems requiring additional thread length. Manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards, it ensures durable, leak-free performance in high-pressure hydraulic and pneumatic applications.
Key Features & Benefits
Durable Construction: High-quality mild steel for strength and longevity
Thread Configuration: Extended BSPP male x male for additional reach
Locknut Included: Prevents loosening under vibration and operational stress
Extended Design: Provides increased fitting flexibility in tight or complex assemblies
Standard Compliance: Manufactured to BS EN 10277 for accurate, consistent threading
Quality Manufacturing: Produced under ISO 9001-certified processes for reliable performance
Downloads
Burnett & Hillman Pressure Guide

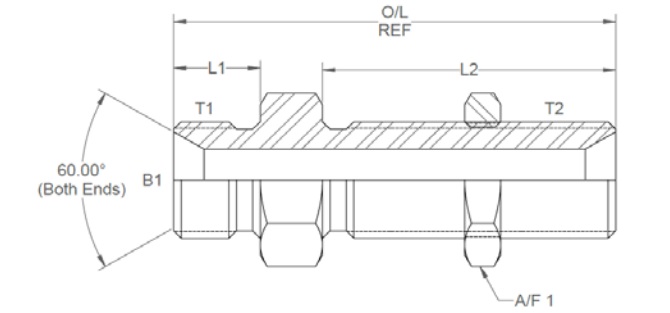

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
A/F (mm)
380256
8BPX0404
1/4
1/4
0.234
-
0.45
1.79
2.51
19
19
380257
8BPX0606
3/8
3/8
0.312
-
0.52
1.85
2.72
22
22
380258
8BPX0608
3/8
1/2
0.312
0.437
0.52
2.03
2.98
27
27
380259
8BPX0806
1/2
3/8
0.437
0.312
0.6
1.85
2.88
27
22
380260
8BPX0808
1/2
1/2
0.437
-
0.6
2.03
3.06
27
27
380261
8BPX1010
5/8
5/8
0.5
-
0.7
2.07
3.17
30
30
380262
8BPX1208
3/4
1/2
0.659
0.437
0.75
2.03
3.13
32
27
380263
8BPX1212
3/4
3/4
0.625
-
0.75
2.25
3.33
32
32
380264
8BPX1616
1
1
0.875
-
0.8
2.56
3.89
41
41
