Thread Type: BSPP (British Standard Parallel Pipe) male x male
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C (no pressure reduction)
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended torque values for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

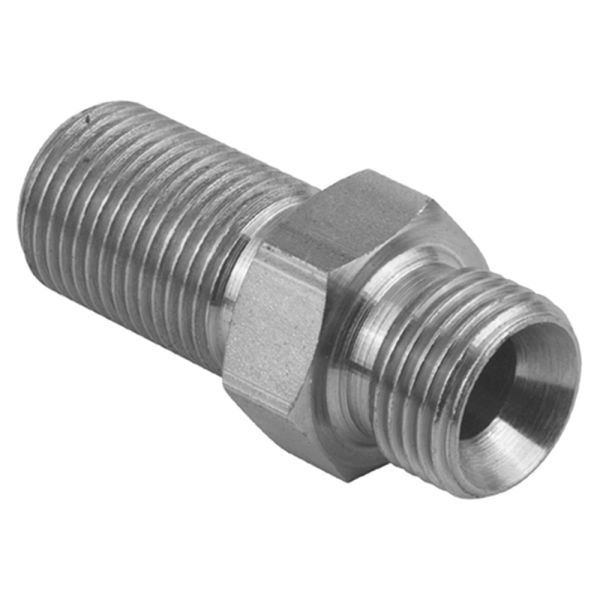

This BSPP male-to-male adaptor with a 60° cone sealing face is designed for connecting hydraulic components in high-pressure systems. Supplied without a locknut, it is manufactured by Burnett & Hillman from high-quality mild steel to BS EN 10277 standards. The 60° cone ensures a reliable, leak-free metal-to-metal seal, making it suitable for a variety of hydraulic and pneumatic applications.
Locknut-Free Design: Allows flexible use with existing system components
Standard Compliance: Manufactured to BS EN 10277 for dimensional precision
Versatile Application: Suitable for hydraulic and pneumatic systems requiring secure BSPP connections
Quality Manufacturing: Produced under ISO 9001-certified processes for consistent product reliability
Downloads
Burnett & Hillman Pressure Guide

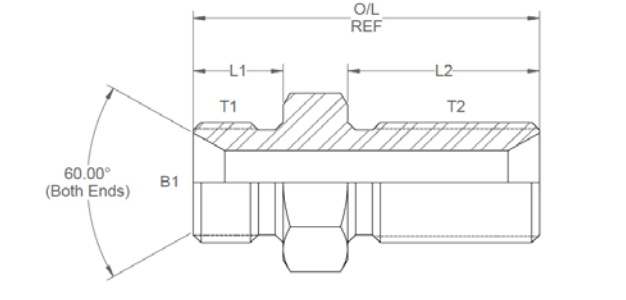

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
O/L (")
A/F (mm)
380265
8BP0202
1/8
1/8
0.156
-
0.44
0.98
1.67
14
380266
8BP0404
1/4
1/4
0.234
-
0.45
1.04
1.76
19
380267
8BP0406
1/4
3/8
0.234
0.312
0.45
1.1
1.9
22
380268
8BP0604
3/8
1/4
0.312
0.234
0.52
1.04
1.91
22
380269
8BP0606
3/8
3/8
0.312
-
0.52
1.1
1.97
22
380270
8BP0608
3/8
1/2
0.312
0.437
0.52
1.28
2.23
27
380271
8BP0806
1/2
3/8
0.437
0.312
0.6
1.1
2.13
27
380272
8BP0808
1/2
1/2
0.437
-
0.6
1.28
2.31
27
380273
8BP0812
1/2
3/4
0.437
0.625
0.6
1.32
2.25
32
380274
8BP1010
5/8
5/8
0.5
-
0.7
1.32
2.42
30
380275
8BP1208
3/4
1/2
0.625
0.437
0.75
1.28
2.36
32
380276
8BP1212
3/4
3/4
0.625
-
0.75
1.32
2.4
32
380277
8BP1616
1
1
0.875
-
0.8
1.57
2.9
41
380278
8BP2020
1 1/4
1 1/4
1.125
-
0.8
1.57
2.9
50
380279
8BP2424
1 1/2
1 1/2
1.312
-
0.85
1.57
2.97
55
380280
8BP3232
2
2
1.719
-
1
1.57
3.17
70
