UNF male: Straight thread with compatible sealing method
Thread Type: JIC (Joint Industry Council) male x UNF (Unified National Fine) male
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Suitable for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

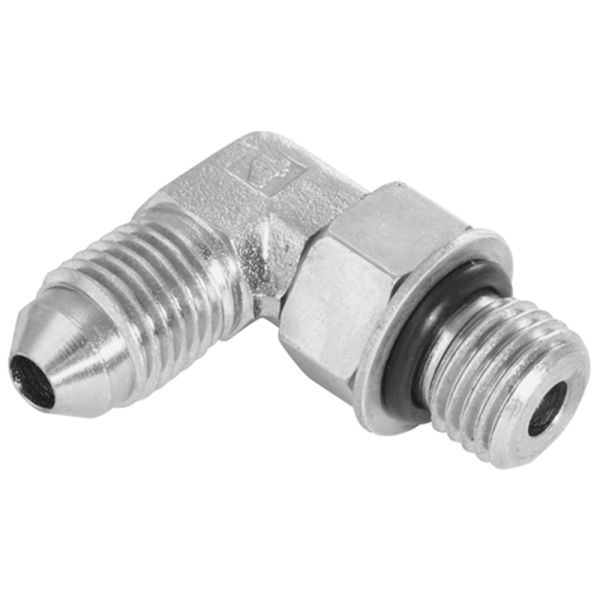

This 90° positional forged elbow connects a JIC male thread with a 37° cone to a UNF male thread, providing a secure and adaptable connection for hydraulic systems. The positional forged design enables the UNF end to be precisely oriented during installation, ensuring correct hose routing and alignment in confined or complex layouts. Manufactured from high-strength mild steel to BS EN 10277 standards, this fitting delivers durability, accuracy, and leak-free performance under demanding conditions.
Key Features & Benefits
Mixed Thread Adaptability: Connects JIC male 37° cone to UNF male thread
Positional Forged Design: Allows exact alignment during assembly
Reliable Sealing: 37° cone ensures leak-free connection on the JIC side
Space-Saving Elbow: 90° configuration for efficient routing in tight spaces
Strong and Durable: Mild steel for high-pressure applications
Precision Machined: Meets BS EN 10277 thread and sealing standards
Quality Certified: Manufactured under ISO 9001 processes
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 & T2 (")
B1 & B2 (")
L1 (")
L2 (")
LL1 (")
LL2 (")
A/F (")
A/F1 (")
381043
03085FDPOS
7/16
0.172
0.535
0.73
0.89
1.03
0.438
0.562
381044
03087FDPOS
9/16
0.297
0.541
0.75
1.06
1.25
0.562
0.687
381045
03088FDPOS
3/4
0.391
0.642
0.86
1.25
1.45
0.75
0.875
381046
03089FDPOS
7/8
0.484
0.743
1
1.45
1.7
0.875
1
381047
03090FDPOS
1 1/16
0.609
0.849
1.14
1.66
1.94
1.062
1.25
381048
03092FDPOS
1 5/16
0.844
0.896
1.14
1.81
2.05
1.312
1.5
