Metric male: Straight thread with compatible sealing method
Thread Type: JIC (Joint Industry Council) male x Metric male (1.5 mm pitch)
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40 °C to +120 °C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: For lightly oiled steel threads only
Quality Assurance: ISO 9001-certified manufacturing
Description

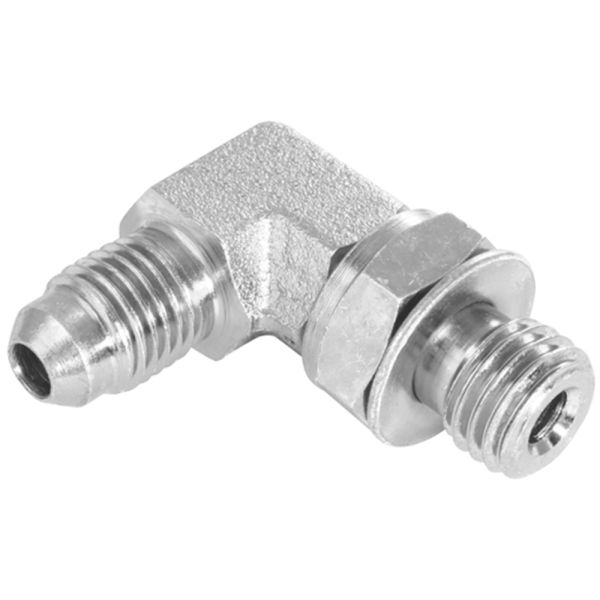

This 90° positional forged elbow connects a JIC male thread with a 37° cone to a metric male thread with a 1.5 mm pitch. The positional forged design allows the metric end to be precisely oriented during installation, ensuring accurate alignment in complex hydraulic layouts. The JIC side provides a secure metal-to-metal seal, while the metric end ensures compatibility with European and international hydraulic systems. Manufactured from durable mild steel to BS EN 10277, this fitting offers strength, leak resistance, and precision in demanding fluid power applications.
Key Features & Benefits
Mixed Thread Configuration: Connects JIC 37° cone to metric 1.5 mm pitch
Positional Forged Metric End: Allows exact alignment during installation
Reliable Sealing: JIC cone ensures a leak-free connection
Right-Angle Design: Ideal for compact or tight-space hose routing
Durable Build: Mild steel for high-pressure, long-term use
Precision Machined: Threads and sealing faces to BS EN 10277 standards
Certified Quality: Manufactured under ISO 9001 processes
Downloads
Burnett & Hillman Pressure Guide

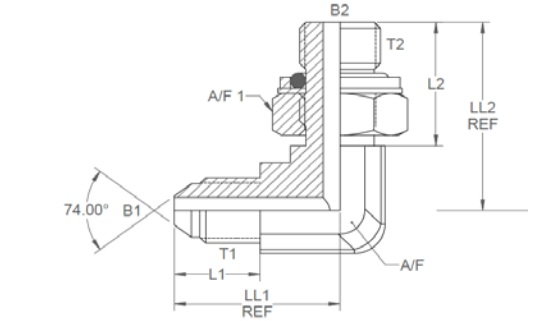

SKU
Product Code
T1 (")
T2 (mm)
B1 (")
B2 (")
L1 (")
L2 (")
LL1 (")
LL2 (")
A/F (mm)
A/F1 (mm)
381027
29500FDPOS
7/16
12
0.172
0.157
0.535
0.826
0.855
1.244
14
17
381028
29501FDPOS
7/16
14
0.172
0.236
0.535
0.826
0.855
1.362
14
19
381029
29502FDPOS
9/16
16
0.296
0.275
0.541
0.905
1.062
1.5
19
22
381030
29503FDPOS
9/16
18
0.296
0.354
0.541
1.023
1.062
1.606
19
24
381031
29505FDPOS
3/4
18
0.391
0.354
0.641
1.023
1.26
1.5
19
24
381032
29506FDPOS
3/4
20
0.391
0.472
0.641
1.082
1.26
1.606
22
27
381033
29507FDPOS
3/4
22
-
-
-
-
-
-
-
-
381034
29508FDPOS
7/8
22
0.484
0.472
0.742
1.082
1.456
1.606
22
27
381035
29509FDPOS
1 1/16
22
0.609
0.472
0.848
1.082
1.653
1.9
27
27
