Thread Type: ORFS (O-Ring Face Seal) male x ORFS swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Suitable for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

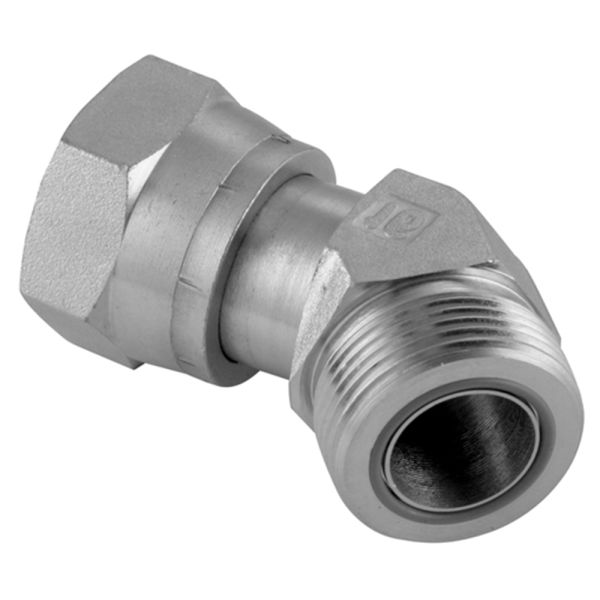

This compact forged 45° elbow connects an ORFS male thread to an ORFS swivel female thread, both using an O-ring face seal for secure, leak-free performance. The compact forged design is ideal for tight installation spaces, allowing efficient hose or pipe routing while maintaining high flow efficiency. Manufactured from high-quality mild steel to BS EN 10277 standards, this fitting offers durability, precise sealing, and long service life in demanding hydraulic and fluid transfer applications.
Key Features & Benefits
Mixed Connection: ORFS male to ORFS swivel female with O-ring face seal
Compact Forged Design: Perfect for installations with limited space
Reliable O-Ring Seal: Provides consistent leak-free performance under pressure
Optimised 45° Angle: Allows better hose and pipe routing
Durable Mild Steel: Built for strength in demanding hydraulic systems
Precision Machining: Manufactured to BS EN 10277 for accuracy and reliability
ISO Certified Quality: Produced under ISO 9001 quality control standards
Downloads
Burnett & Hillman Pressure Guide
SKU

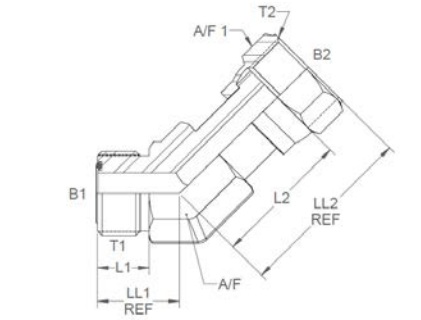

Product Code
T1 & T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
LL1 (")
LL2 (")
A/F (")
A/F1 (")
381388
9356-04-04
9/16
0.172
0.165
0.35
1.04
0.63
1.38
0.562
0.687
381389
9356-06-06
11/16
0.264
0.264
0.41
1.15
0.74
1.56
0.75
0.812
381390
9356-08-08
13/16
0.378
0.358
0.47
0.47
0.8
1.84
0.75
0.938
381391
9356-10-10
1
0.484
0.453
0.55
1.62
0.92
2.18
1.062
1.125
381392
9356-12-12
1 3/16
0.609
0.547
0.59
1.82
1.02
2.46
1.188
1.375
381393
9356-16-16
1 7/16
0.811
0.783
0.61
2.01
1.18
2.54
1.438
1.625
381394
9356-20-20
1 11/16
1.024
1.024
0.61
2.29
1.26
2.7
1.625
1.875
381395
9356-24-24
2
1.26
1.26
0.61
2.41
1.45
2.76
1.875
2.25
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
