Seal Type: 37° cone metal-to-metal seal on JIC side
Thread Type: NPTF (National Pipe Taper Fuel) male x JIC (Joint Industry Council) male
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Suitable for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

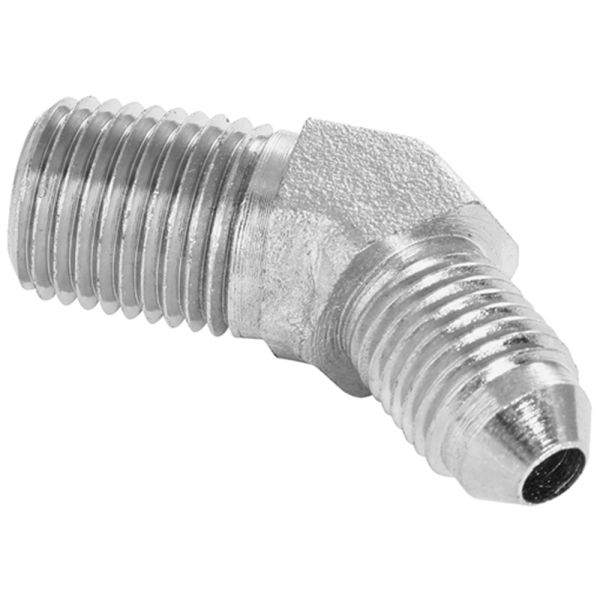

This compact forged 45° elbow connects an NPTF male thread to a JIC male thread with a 37° cone for a precise metal-to-metal seal. The compact forged design is ideal for installations with restricted space, offering both strength and improved hydraulic flow over sharp elbow designs. Manufactured from mild steel to BS EN 10277 standards, this fitting ensures durability, leak-free performance, and reliability in demanding hydraulic and fluid transfer applications.
Key Features & Benefits
Mixed Connection: NPTF male to JIC male with 37° cone seal
Compact Forged Design: Perfect for space-limited installations
Efficient 45° Angle: Improves hose and pipe routing flexibility
Durable Construction: Mild steel for long-lasting service in tough conditions
Precision Machined: Built to BS EN 10277 for accuracy and quality fit
ISO Certified Manufacturing: Produced under ISO 9001 quality standards
Downloads
Burnett & Hillman Pressure Guide

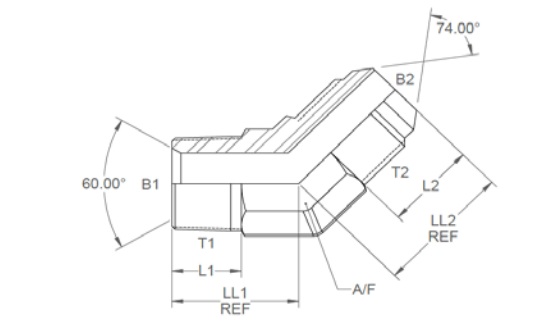

SKU
Product Code
T1 (")
T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
LL1 (")
LL2 (")
A/F (")
381152
04053/45FD
1/4
7/16
0.281
0.172
0.56
0.535
0.86
0.83
0.562
381153
04059/45FD
3/8
9/16
0.406
0.297
0.56
0.541
0.95
0.98
0.75
381154
04060/45FD
3/8
3/4
0.406
0.391
0.56
0.642
0.95
0.98
0.75
381155
04065/45FD
1/2
3/4
0.531
0.391
0.75
0.642
1.17
0.98
0.875
381156
04066/45FD
1/2
7/8
0.531
0.484
0.75
0.743
1.17
1.11
0.875
381157
04073/45FD
3/4
1 1/16
0.719
0.609
0.75
0.849
1.2
1.28
1.062
381158
04076/45FD
1
1 5/16
0.938
0.844
0.94
0.896
1.48
1.47
1.312
