Thread Type: JIC (Joint Industry Council) male x JIC swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Suitable for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

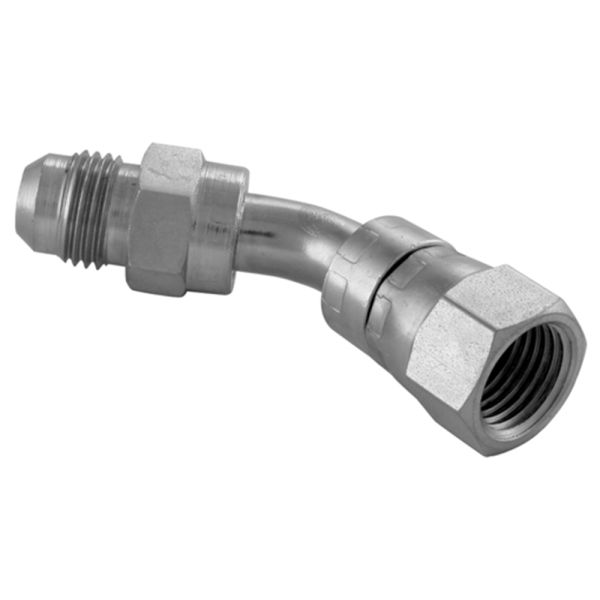

This 45° swept elbow connects a JIC male thread to a JIC swivel female thread, both featuring a 37° cone for a precise metal-to-metal seal. The swept design ensures smoother hydraulic flow and reduced pressure loss compared to standard elbows, while the angled configuration allows for more efficient hose and pipe routing in restricted spaces. Manufactured from mild steel to BS EN 10277 standards, this fitting offers high strength, leak resistance, and reliability for hydraulic and fluid transfer applications.
Key Features & Benefits
Mixed Connection: JIC male to JIC swivel female with 37° cone seal
Swept 45° Design: Enhances flow and reduces turbulence in hydraulic lines
Space-Saving Angle: Ideal for compact and complex system layouts
Durable Material: Mild steel for long service life in demanding conditions
Precision Engineering: Machined to BS EN 10277 for accuracy and strength
ISO Certified Quality: Produced under ISO 9001 quality management
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

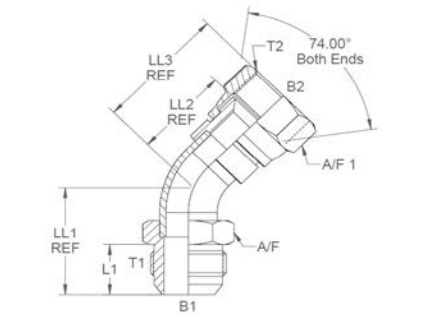

T1 & T2 (")
B1 (")
B2 (")
L1 (")
LL1 (")
LL2 (")
LL3 (")
A/F (")
A/F1 (")
381125
11905
1 1/16
0.609
0.593
0.864
1.952
1.433
2.007
1.125
1.25
381126
11907
1 5/16
0.844
0.811
0.911
1.957
1.688
2.299
1.375
1.5
