Thread Type: JIC (Joint Industry Council) male x JIC swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Suitable for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

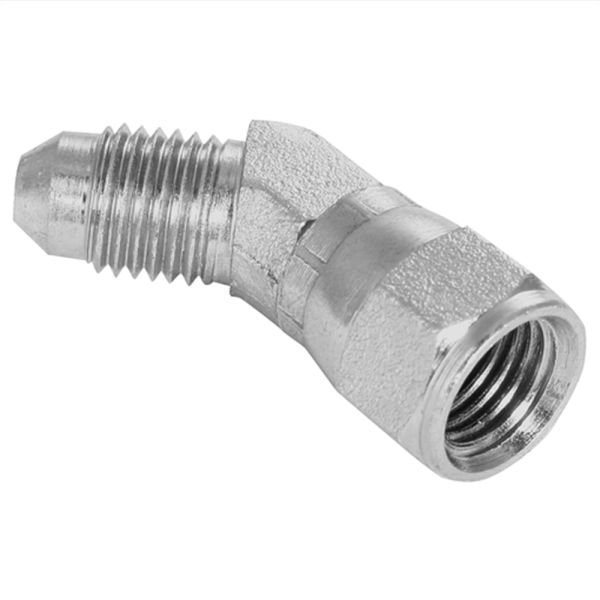

This compact forged 45° elbow connects a JIC male thread to a JIC swivel female thread, both featuring a 37° cone for precise metal-to-metal sealing. The compact forged design allows installation in tight hydraulic system layouts while maintaining high flow efficiency and robust performance. Manufactured from high-quality mild steel to BS EN 10277 standards, this fitting provides exceptional durability, leak resistance, and long service life in demanding hydraulic and fluid transfer environments.
Key Features & Benefits
Compact Forged Design: Ideal for restricted space installations
Mixed Connection: JIC male to JIC swivel female with 37° cone seal
Leak-Free Metal-to-Metal Seal: Reliable under high-pressure conditions
Space-Saving 45° Angle: Improves hose and pipe routing efficiency
Strong Mild Steel Construction: Built for durability and long service life
Precision Machining: Conforms to BS EN 10277 for quality and fit
ISO Certified Manufacturing: Produced to ISO 9001 quality standards
Downloads
Burnett & Hillman Pressure Guide

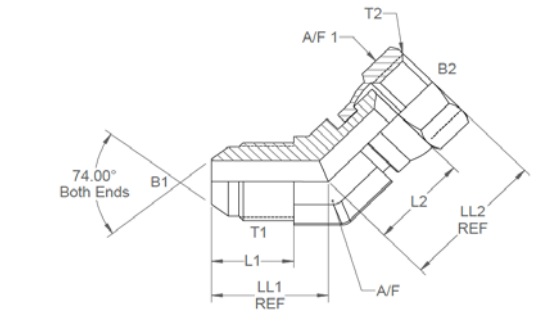

SKU
Product Code
T1 & T2 (")
B1 & B2 (")
L1 (")
L2 (")
LL1 (")
LL2 (")
A/F (")
A/F1 (")
381140
05050/45FD
7/16
0.172
0.535
0.598
0.72
0.94
0.438
0.562
381141
05052/45FD
9/16
0.297
0.541
0.744
0.83
1.12
0.562
0.687
381142
05053/45FD
3/4
0.391
0.642
0.858
0.98
1.28
0.75
0.875
381143
05054/45FD
7/8
0.484
0.743
0.94
1.11
1.44
0.875
1
381144
05055/45FD
1 1/16
0.609
0.849
0.937
1.28
1.5
1.062
1.25
381145
05056/45FD
1 5/16
0.844
0.896
1.153
1.47
1.75
1.312
1.5
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
