Thread Type: BSPP (British Standard Pipe Parallel) male x BSPP male
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

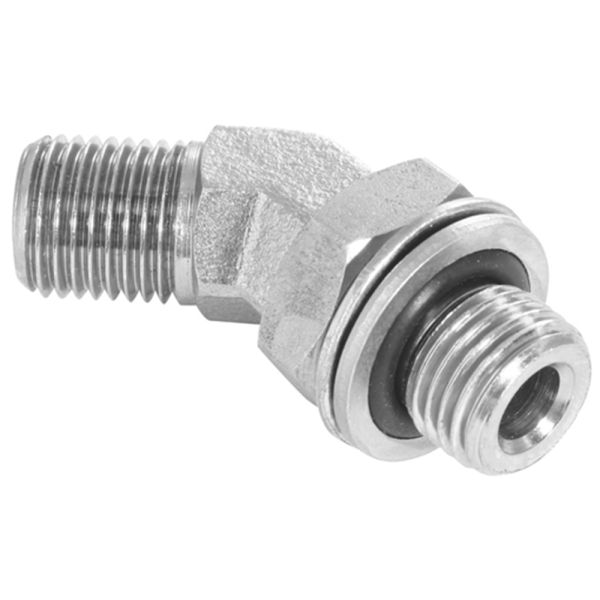

This 45° positional forged elbow connects two BSPP male threads and allows precise alignment during installation for optimal hose or pipe routing. The positional forged design is ideal for applications where accurate orientation of the connection is essential, helping to reduce hose strain and improve system layout. Manufactured from high-quality mild steel to BS EN 10277, this elbow offers durability, precision, and leak-free performance in demanding hydraulic and industrial applications.
Key Features & Benefits
Positional Forged Design: Enables accurate orientation during assembly
45° Elbow: Facilitates efficient routing in confined or angled layouts
BSPP Male-to-Male: Compatible with standard hydraulic fittings
Strong Construction: Mild steel for long service life and high pressure capability
Precision Machining: Meets BS EN 10277 thread and sealing standards
Versatile Use: Suitable for hydraulic, pneumatic, and industrial systems
ISO Certified Quality: Manufactured under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code
T1 & T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
LL1 (")
LL2 (")
A/F (mm)
A/F1 (mm)
380102
03051FDPOS-45
1/4
0.205
0.296
0.433
0.787
0.826
1.017
17
19
380103
03053FDPOS-45
3/8
0.312
0.39
0.472
0.787
0.944
1.339
19
22
380104
03054FDPOS-45
1/2
0.437
0.484
0.551
1.027
1.062
1.614
24
27
380105
03056FDPOS-45
3/4
0.659
0.61
0.63
1.027
1.26
1.732
32
36
380106
03057FDPOS-45
1
0.875
0.846
0.748
1.181
1.378
1.89
41
41
