Thread Type: BSPP (British Standard Pipe Parallel) swivel female x BSPP swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Suitable for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

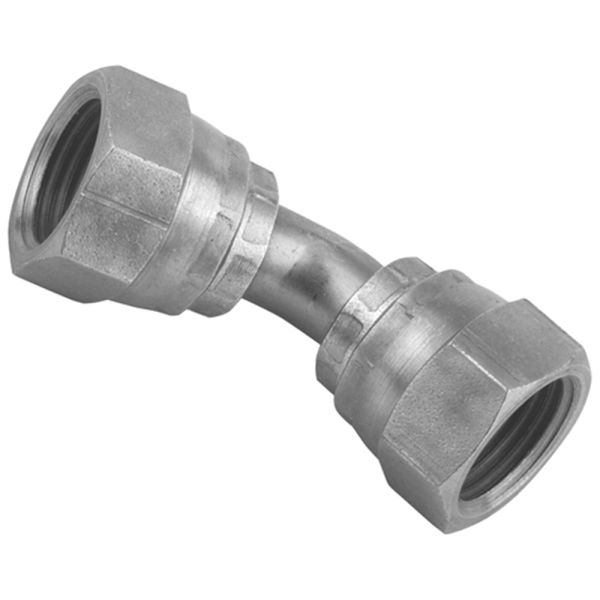

This 45° swept elbow connects two BSPP swivel female threads with a 60° cone for secure metal-to-metal sealing. The swept design promotes smoother fluid flow and reduces turbulence compared to standard elbows, while its angled form allows for efficient hose and pipe routing in confined hydraulic system layouts. Manufactured from high-quality mild steel to BS EN 10277 standards, this fitting offers durability, leak resistance, and precise performance for high-pressure applications.
Key Features & Benefits
Dual Swivel Female: BSPP swivel female to BSPP swivel female with 60° cone seal
Swept 45° Design: Improves hydraulic flow and minimises pressure loss
Space-Saving Angle: Ideal for routing in compact hydraulic systems
Durable Mild Steel: High strength for demanding environments
Precision Machined: Manufactured to BS EN 10277 for accuracy and reliability
ISO Certified Quality: Produced under ISO 9001 quality control
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

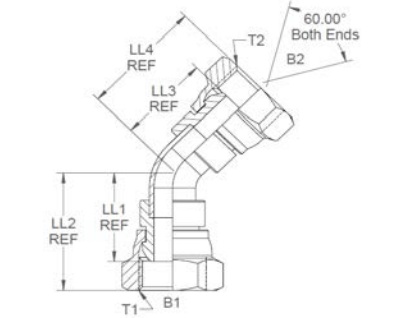

T1 & T2 (")
B1 & B2 (")
LL1 & LL3 (")
LL2 & LL4 (")
AF & AF1 (mm)
380094
SEBF04
1/4
0.172
0.95
1.165
19
380095
SEBF06
3/8
0.271
1.126
1.379
22
380096
SEBF08
1/2
0.375
1.285
1.577
27
380097
SEBF10
5/8
0.464
1.257
1.662
30
380098
SEBF12
3/4
0.6
1.356
1.746
32
380099
SEBF20
1 1/4
1.014
1.908
2.343
50
380100
SEBF24
1 1/2
1.201
2.448
2.95
55
380101
SEBF32
2
1.703
2.825
3.492
70
