Thread Type: BSPP (British Standard Pipe Parallel) male x BSPP male
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Recommended for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

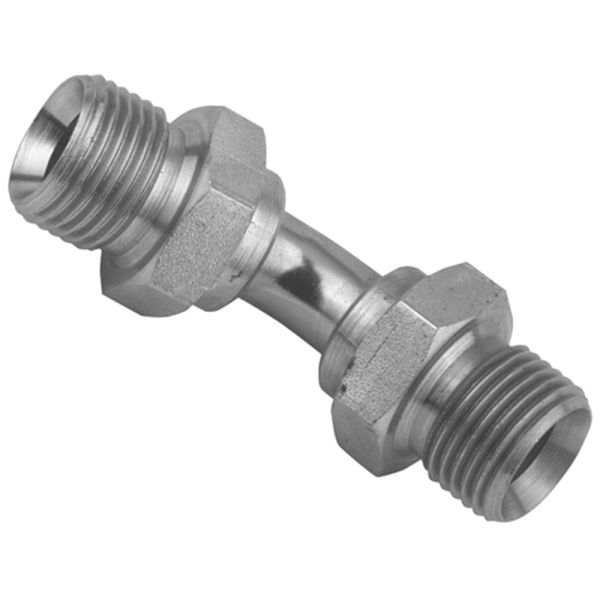

This 45° swept elbow features BSPP male threads with a 60° cone on both ends, providing a secure metal-to-metal seal for hydraulic and fluid transfer systems. The swept design promotes smoother flow and reduces turbulence compared to standard elbows, while the angled configuration allows for more efficient routing in confined spaces. Manufactured from high-quality mild steel to BS EN 10277, this fitting offers durability, leak resistance, and precision performance for demanding industrial applications.
Key Features & Benefits
Swept 45° Design: Improves flow efficiency and reduces pressure drop
Dual 60° Cone Seal: Ensures a reliable, leak-free connection
Male-to-Male BSPP Threads: Compatible with standard hydraulic fittings
Durable Material: Mild steel construction for strength and longevity
Precision Machined: Threads and sealing faces meet BS EN 10277 standards
Space-Saving Angle: Allows easier installation in tight layouts
ISO Certified Quality: Manufactured under ISO 9001 controls
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

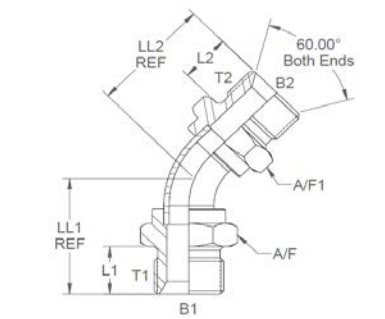

T1 & T2 (")
B1 & B2 (")
L1 & L2 (")
LL1 & LL2 (")
A/F & A/F1 (mm)
380079
SEBM04
1/4
0.25
0.45
1.117
19
380080
SEBM06
3/8
0.375
0.52
1.273
22
380081
SEBM08
1/2
0.5
0.6
1.562
27
380082
SEBM10
5/8
0.562
0.7
1.66
30
380083
SEBM24
1 1/2
1.312
0.85
2.748
55
