Thread Type: BSPP (British Standard Pipe Parallel) male x BSPP swivel female
Standard Compliance: Manufactured to BS EN 10277
Temperature Range: -40°C to +120°C without pressure reduction
Pressure Ratings:
Proof Pressure: 2× working pressure
Burst Pressure: 4× working pressure
Torque Guidance: Suitable for lightly oiled steel threads
Quality Assurance: ISO 9001-certified manufacturing
Description

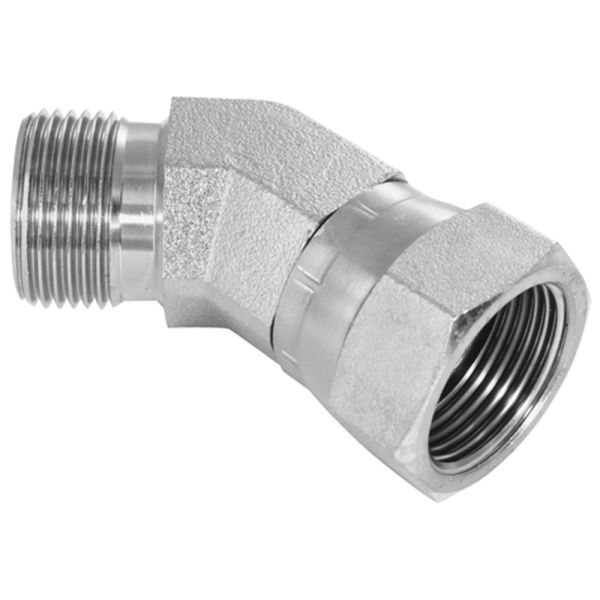

This forged compact 45° elbow connects a BSPP male thread to a BSPP swivel female thread, both with a 60° cone for a secure metal-to-metal seal. The compact forged design allows installation in tight hydraulic layouts where space is limited, while maintaining full strength and flow efficiency. Manufactured from high-quality mild steel to BS EN 10277, this fitting provides durability, leak resistance, and precision performance for high-pressure hydraulic systems.
Key Features & Benefits
Compact Forged Design: Perfect for installations with limited space
Mixed Connection: BSPP male to BSPP swivel female with 60° cone seal
Reliable Sealing: Metal-to-metal 60° cone for leak-free operation
Efficient 45° Angle: Enables better hose and pipe routing
Durable Material: Mild steel for high-pressure, long-term use
Precision Machining: Conforms to BS EN 10277 for accuracy
ISO Certified Quality: Manufactured under ISO 9001 standards
Downloads
Burnett & Hillman Pressure Guide
SKU
Product Code

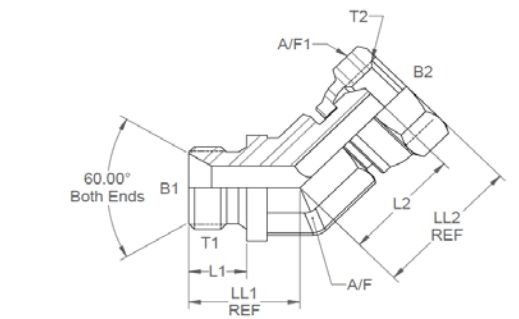

T1 & T2 (")
B1 (")
B2 (")
L1 (")
L2 (")
LL1 (")
LL2 (")
A/F (mm)
A/F1 (mm)
380112
05004/45FD
3/4
0.659
0.6
0.63
1.181
1.26
1.62
27
32
380113
05005/45FD
1
0.875
0.797
0.748
1.259
1.377
1.73
33
41
