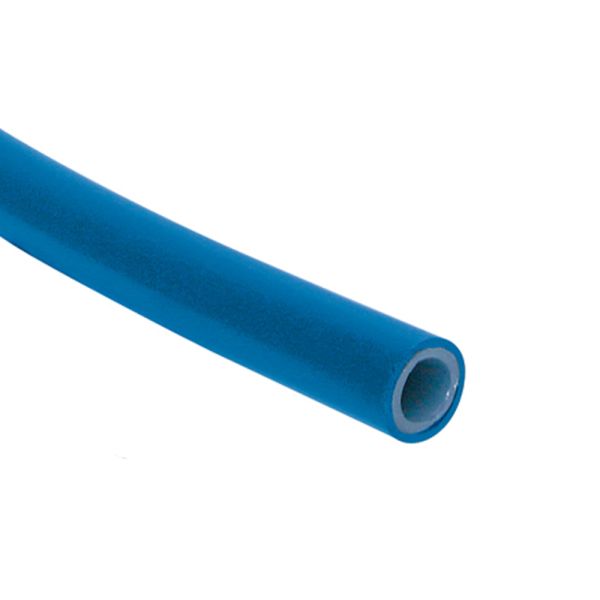

Air-Pro Anti-Splatter Coil Tube Blue
Useful Information
Technical Specification
- Material: Polyurethane inner core with flame-retardant PVC alloy jacket
- Outside Diameters: 6mm, 8mm, 10mm, 12mm
- Operating Temperature Range: -40°C to +70°C
- Working Pressure: Up to 13 bar (188 psi)
- Safety Factor: 3:1
- Colour: Blue
- Coil Lengths: 50m
Description
Engineered for use in environments exposed to weld spatter and mechanical abrasion, this dual-layered tubing combines a 98A polyurethane core with a flame-retardant outer jacket. Ideal for robotic automation, pneumatic air lines, and cooling systems, it delivers robust performance while maintaining flexibility across a wide temperature range. The pin-pricked, non-marking outer surface reduces risk of marking components, making it suitable for sensitive assembly areas and high-traffic industrial settings.
Key Features & Benefits
- High abrasion resistance for extended service life
- Flame-retardant outer jacket deflects weld spatter
- Non-marking, pin-pricked surface for clean operations
- Flexible design eases routing in confined spaces
- Excellent fitting retention, even at elevated temperatures
- Suitable for air, water, and deionised water transfer
- Lightweight alternative to rubber hoses
- Widely used in welding lines, injection moulding and automation
| Product Code | D2 (mm) | D1 (mm) | Working Pressure (bar/psi) | R (mm) |
| 377863 | 4 | 6 | 11/159 | 20 |
| 377864 | 5 | 8 | 13/188 | 30 |
| 377865 | 6.5 | 10 | 11/159 | 35 |
| 377866 | 8 | 12 | 10/145 | 45 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
