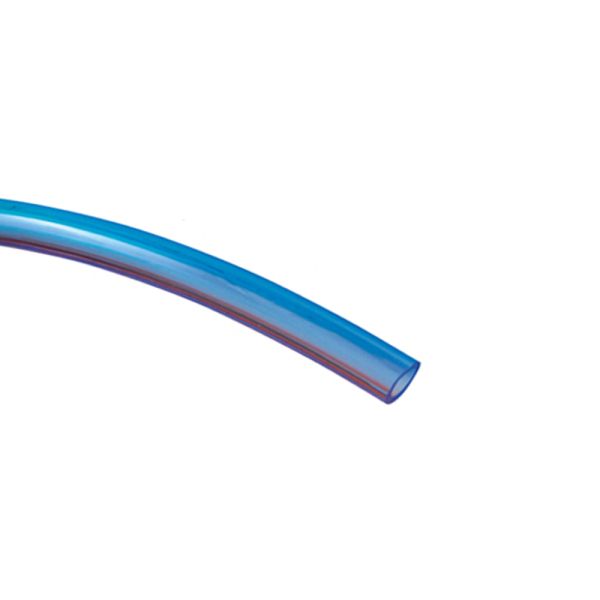

LE Polyether PU Tube Tinted Blue
Useful Information
Technical Specification
- Material: Polyether Polyurethane
- Colour: Blue (crystal-clear tinted)
- Length: 25 metres
- Operating Temperature Range: -20°C to +70°C
- Working Pressure: Vacuum to 12 bar
- Shore Hardness: 52°C
- Standards: Conforms to NFE 49.101
- Silicone-Free: Yes
- UV Resistant: Yes
Description
Built for demanding industrial and automation environments, this flexible blue tubing combines exceptional clarity with rugged performance. Its polyether polyurethane construction ensures resistance to moisture, microbial contamination, and UV exposure, making it well-suited for clean and dynamic applications.
Commonly used in robotics, and pneumatic systems, the tubing’s enhanced bend radius and mechanical resilience support compact installations without compromising airflow or durability.
Key Features & Benefits
- UV-resistant and silicone-free for hygienic or sensitive environments
- High clarity with blue tinting for easy visual inspection
- Excellent flexibility with small bend radius capability
- Resists humidity and bacterial ingress for long-term reliability
- Suitable for vacuum and compressed air systems up to 12 bar
- Performs reliably across a broad temperature range
- Ideal for automated systems and robotics
| SKU | Outside Diameter (mm) | Tolerance on Outside Diameter (mm) | Internal Diameter (mm) | Minimum Bend Radius +20ºC (mm) | Length (m) |
| 377894 | 4 | +/- 0.1 | 2.5 | 10 | 25 |
| 377896 | 6 | +/- 0.12 | 4 | 20 | 25 |
| 377898 | 8 | +/- 0.15 | 5.5 | 25 | 25 |
| 377900 | 10 | +/- 0.15 | 7 | 35 | 25 |
| 377902 | 12 | +/- 0.15 | 8 | 40 | 25 |
