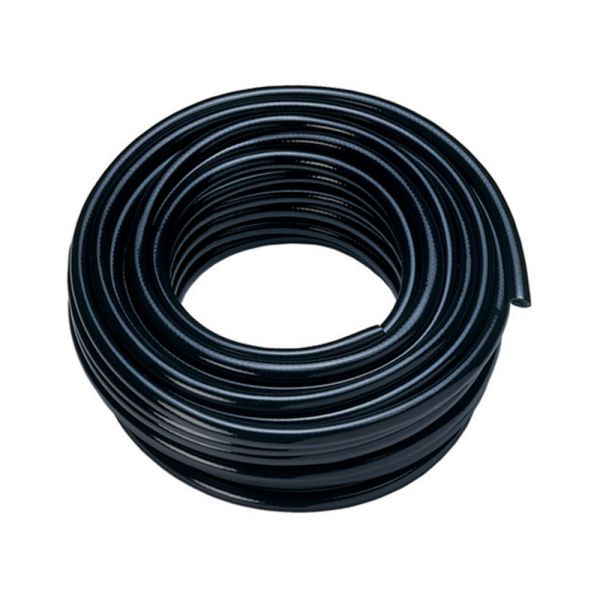

Kelm Black Nylon Tube
Technical Specification
- Material: Nylon 6
- Colour: Black
- Operating Temperature: -40°C to +80°C
- Working Pressure: Up to 600 psi (3:1 safety factor)
- Sizes Available: 3/16" to 1/2" outside diameter
- Coil Length: 30 metres
- Silicone-Free: Yes
- UV Stability: Yes
- Burst Pressure Range (at 73°C): Up to 1800 psi
- Not Suitable For: Water or high humidity environments
Description
Crafted from premium-quality nylon 6, this flexible tube provides robust performance in industrial environments where strength, stability, and chemical resistance are vital. Designed for use in pneumatic control systems, fluid power lines, and general industrial automation, it delivers excellent abrasion resistance and mechanical integrity. The black nylon construction offers additional UV protection, making it suitable for varied installation conditions. Its low moisture uptake and high dimensional accuracy ensure long-term reliability in dry applications. This tube is not suitable for water or humid environments.
Key Features & Benefits
- High tensile strength and rigidity for demanding applications
- Excellent resistance to a wide range of industrial chemicals
- Superior abrasion and wear resistance for extended service life
- Minimal moisture absorption prevents swelling or degradation
- Outstanding dimensional stability under fluctuating pressures
- UV-stable and silicone-free, suitable for clean or outdoor-sensitive settings
- Broad size range ensures compatibility with standard pneumatic fittings

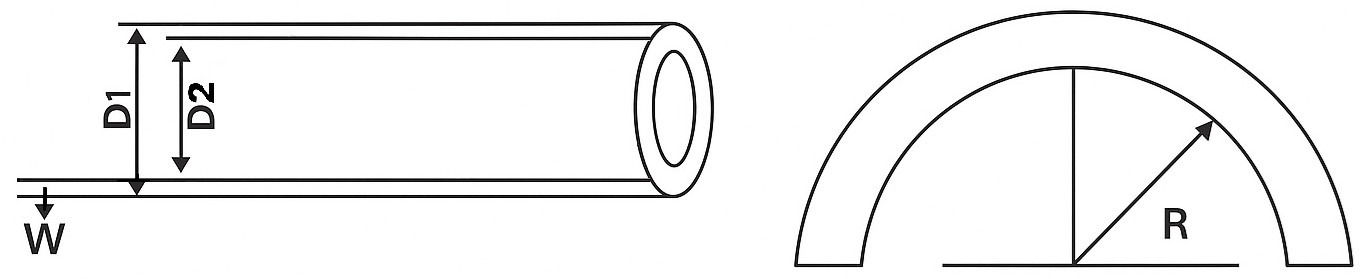

| Product Code | D1 (inch) | D2 (inch) | W (inch) | R (inch) | Working Pressure @ 73°C (psi) | Burst Pressure @ 73°C (psi) |
| 377662 | 3/16 | 0.117 | 0.352 | 0.45 | 500 | 1500 |
| 377663 | 1/4 | 0.170 | 0.040 | 1.15 | 430 | 1300 |
| 377664 | 5/16 | 0.212 | 0.502 | 1.18 | 425 | 1275 |
| 377665 | 3/8 | 0.250 | 0.063 | 1.25 | 600 | 1800 |
| 377666 | 1/2 | 0.375 | 0.063 | 1.75 | 400 | 1200 |
