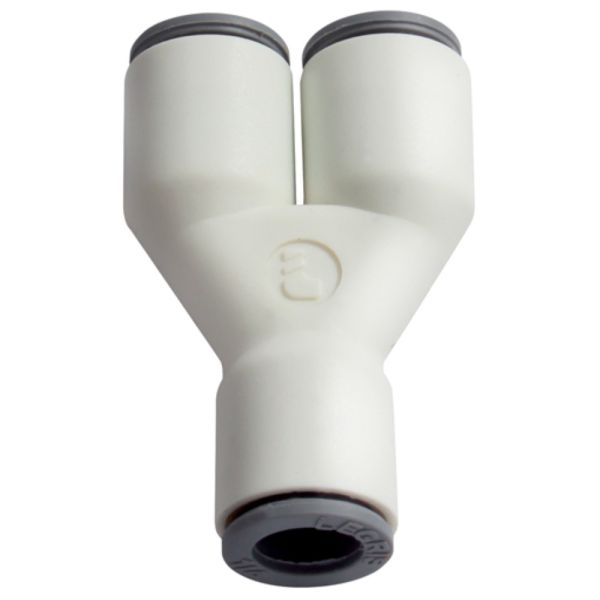

Y Splitter

Useful Information

Key Features / Tech Specs:

  • Tube x Tube Metric
  • WRAS approved (Approval number 1811040)
  • Max. working pressure up to 16 bar
  • Working Temperature 2°C - 93°C
  • Material: Bio-based Polymer
  • Seal: EPDM
  • Ergonomic and aesthetic design that is easy to clean.

Y Splitter txt.jpg

Product Code ØD ØD1 H K L N
382259 4 4 17.5 8.5 30 9
382260 6 6 21.5 10.5 36.5 11
382261 8 8 28 13.5 44.5 14.5
382262 10 10 33 16 53 17
382263 12 12 39 19 60.5 20



Useful Info:

Working pressure decreases as working temperature and fitting size increases.

Applications include the fluid transfer for water, beverages, coolants and inert gas.

Standards and approvals include, NSF51, RoHS, WRAS and Regulation 1935/2004.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
382259Parker Push-in Y Splitter 4mm £11.24 50% £5.62
382260Parker Push-in Y Splitter 6mm £11.40 50% £5.70
382261Parker Push-in Y Splitter 8mm £14.44 50% £7.22
382262Parker Push-in Y Splitter 10mm £17.32 50% £8.66
382263Parker Push-in Y Splitter 12mm £21.72 50% £10.86
