Couplings
Useful Information

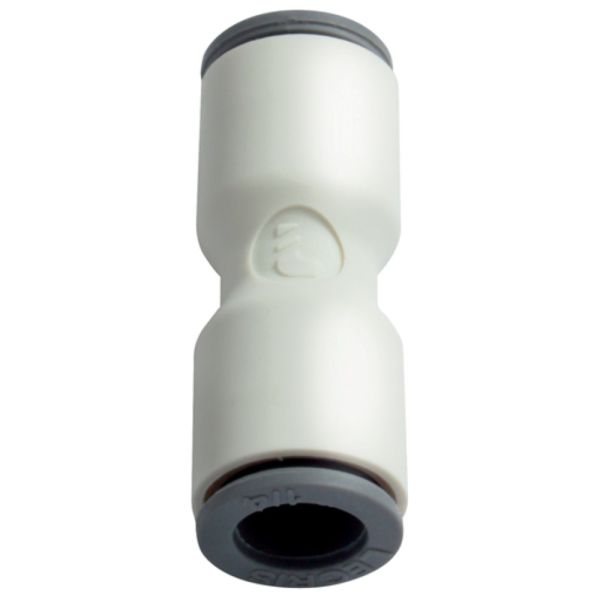

Key Features / Tech Specs:
- Tube x Tube Metric
- WRAS approved (Approval number 1811040)
- Max. working pressure up to 16 bar
- Working Temperature 2°C - 93°C
- Material: Bio-based Polymer
- Seal: EPDM
- Ergonomic and aesthetic design that is easy to clean.
| Product Code | ØD | ØD1 | G | L |
| 382249 | 4 | 4 | 8.5 | 26.5 |
| 382250 | 6 | 6 | 10.5 | 30 |
| 382251 | 8 | 8 | 13.5 | 37 |
| 382253 | 12 | 12 | 19 | 50.5 |
Useful Info:
Working pressure decreases as working temperature and fitting size increases.
Applications include the fluid transfer for water, beverages, coolants and inert gas.
Standards and approvals include, NSF51, RoHS, WRAS and Regulation 1935/2004.
