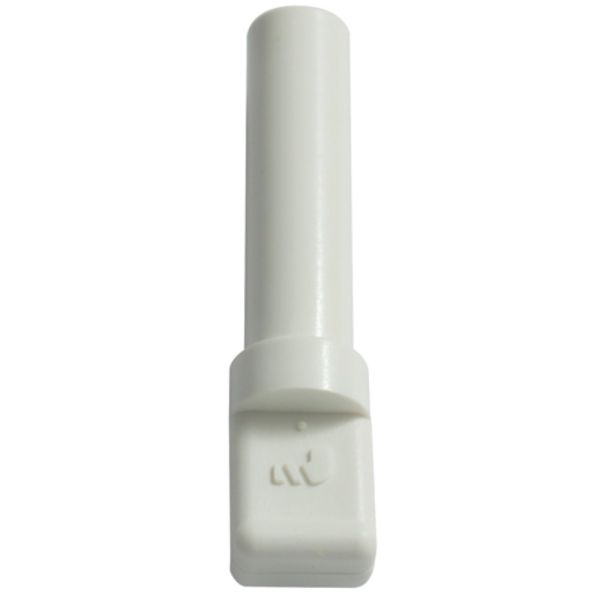

Plug
Useful Information
Key Features / Tech Specs:
- Tube x Stem Inch
- Max. working pressure up to 16 bar
- Working Temperature 2°C - 93°C
- Material: Bio-based Polymer
- Seal: EPDM
- Ergonomic and aesthetic design that is easy to clean.
| Prodct Code | ØD (Inch) | G | L | L1 |
| 382164 | 1/4 | 8 | 36.5 | 22 |
| 382165 | 3/8 | 11.6 | 42.5 | 22 |
| 382166 | 1/2 | 14.7 | 48.5 | 21.5 |
Useful Info:
Working pressure decreases as working temperature and fitting size increases.
Applications include the fluid transfer for water, beverages, coolants and inert gas.
Standards and approvals include, NSF51, RoHS, WRAS and Regulation 1935/2004.
