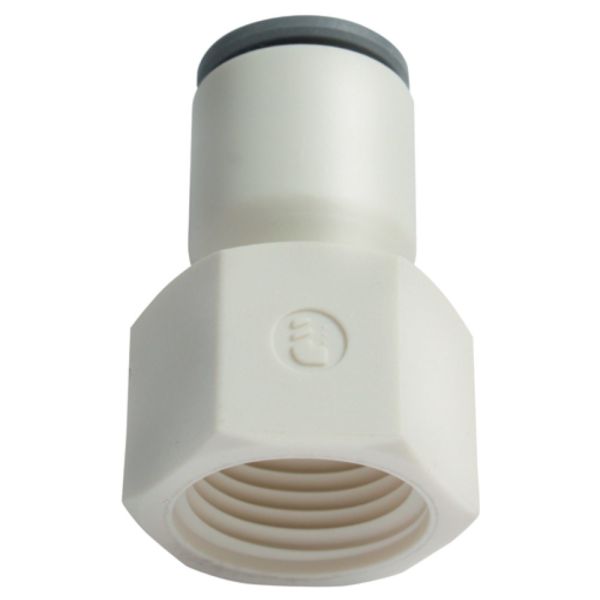

F Stud Fitting

Useful Information

Key Features / Tech Specs:

  • Tube x NPT
  • Max. working pressure up to 16 bar
  • Working Temperature 2°C - 93°C
  • Material: Bio-based Polymer
  • Seal: EPDM
  • Ergonomic and aesthetic design that is easy to clean.

Female Stud Fittings.jpg

Prodct Code ØD (mm) C (Inch) F (Inch) H (mm)
382096 1/4 1/4 11/16 30
382097 3/8 3/8 13/16 36



Useful Info:

Working pressure decreases as working temperature and fitting size increases.

Applications include the fluid transfer for water, beverages, coolants and inert gas.

Standards and approvals include, NSF51, RoHS, WRAS and Regulation 1935/2004.

Torque Settings 1/8" - 1/4" = 0.15 daN.m

                         3/8" - 1/2" = 0.30 daN.m



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
382095Parker Push-in Female Stud NPT 1/4" x 1/4" £8.04 50% £4.02
382096Parker Push-in Female Stud NPT 3/8" x 3/8" £7.32 50% £3.66
