M Swivel Elbow

Useful Information

Key Features / Tech Specs:

  • Manufactured by John Guest
  • Metric tube x metric elbow
  • Pressure rated to 16 bar
  • Maximum temperature: 65°C

Useful Info:


Product Code To Suit Hose O.D (mm) Thread Max. Bar up to 20°C Max. Bar at 65°C
381807 4 M5 16 10
381808 5 M5 16 10
381809 6 M5 16 10

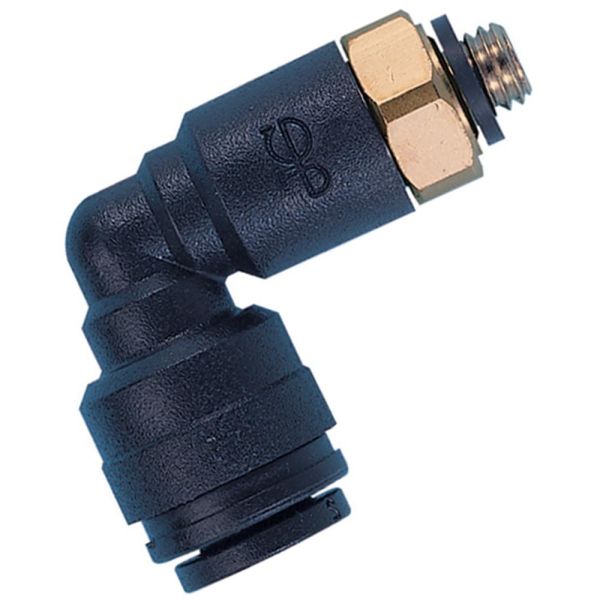

These elbows have a push-in tube end suited to tubing with an outer diameter of 4, 5 or 6mm while the threaded end is an M5 metric male connection. They are used to connect tubing to a female threaded fitting at an angle of 90°.

Tube inserts must be used with pneumatic applications where pressures are in excess of 10 bar; you should not exceed 16 bar. Suitable for use with Polyethylene, Polyurethane, Nylon tubing as well as soft metal tubings such as copper or mild steel.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
381807JG Swivel Elbow Male 4mm x M5 £5.20 30% £3.64
381808JG Swivel Elbow Male 5mm x M5 £5.40 30% £3.78
381809JG Swivel Elbow Male 6mm x M5 £5.35 30% £3.75
