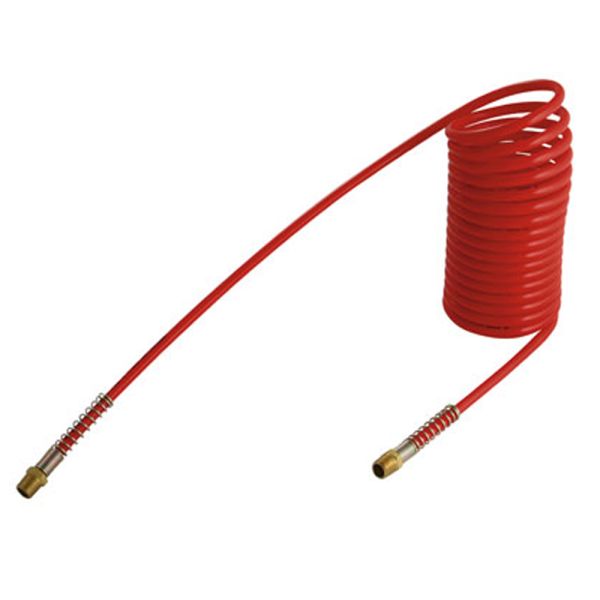

Kelm Red Nylon Tube
Useful Information
Technical Specification
- Material: Nylon
- Construction: Seamless, unequal tail assembly
- Thread Type: BSPT male (1/4" or 3/8" depending on size)
- Operating Temperature Range: -40°C to +80°C
- Safety Factor: 3:1
- Colour: Red
Description
This robust and versatile tube assembly is designed for demanding pneumatic, fuel, and oil line applications. Featuring an unequal tail configuration, it offers flexibility in system layout while maintaining reliable performance. Manufactured through a seamless extrusion process, it delivers a smooth, high-gloss finish that supports optimal flow and resistance to abrasion. Its excellent chemical resistance and low moisture absorption make it a reliable choice across varied temperature and humidity conditions, while its compact, lightweight form is ideal for installations in confined or mobile setups.
Key Features & Benefits
- Seamless nylon tubing with high-gloss inner and outer surfaces
- Unequal tail design allows for versatile system integration
- Excellent resistance to oils, fuels, and a broad range of chemicals
- Low moisture absorption - ideal for high-humidity or sealed systems
- Strong coil memory ensures easy recoil and handling
- Heat and light stable - suitable for both indoor and outdoor use
- 3:1 safety factor for dependable performance under pressure
- Widely used in pneumatic, brake control, and fuel delivery systems
| Product Code | ID (mm) | OD (mm) | Working Length (m) | Thread (inch) | Working Pressure @ 23°C (bar) |
| 377762 | 4 | 6 | 2.5 | 1/4 | 25 |
| 377763 | 4 | 6 | 5 | 1/4 | 25 |
| 377764 | 4 | 6 | 10 | 1/4 | 25 |
| 377765 | 4 | 6 | 15 | 1/4 | 25 |
| 377766 | 6 | 8 | 2.5 | 1/4 | 23 |
| 377767 | 6 | 8 | 5 | 1/4 | 23 |
| 377768 | 6 | 8 | 10 | 1/4 | 23 |
| 377769 | 6 | 8 | 15 | 1/4 | 23 |
| 377770 | 8 | 10 | 2.5 | 1/4 | 21 |
| 377771 | 8 | 10 | 5 | 1/4 | 21 |
| 377772 | 8 | 10 | 10 | 1/4 | 21 |
| 377773 | 8 | 10 | 15 | 1/4 | 21 |
| 377774 | 9 | 12 | 2.5 | 3/8 | 23 |
| 377775 | 9 | 12 | 5 | 3/8 | 23 |
| 377776 | 9 | 12 | 10 | 3/8 | 23 |
| 37777 | 9 | 12 | 15 | 3/8 | 23 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
