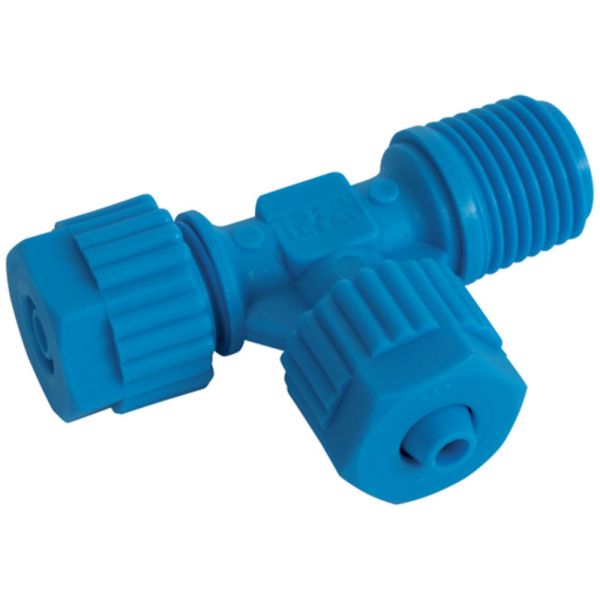

M Run Tee BSPT
Useful Information
Technical Specification
- Manufacturer: Tefen
- Material: Reinforced Polypropylene
- Working Pressure: Up to 14 bar (at 20°C)
- Operating Temperature Range: 4°C to +90°C
- Thread Type: BSPT (Male)
- Installation: Hand tighten only; PTFE tape recommended
Description
Engineered for precision and durability, this male run tee is designed to provide a secure branching connection between tubing and threaded systems. Constructed from reinforced polypropylene, it offers high chemical resistance and mechanical strength, making it suitable for use in compressed air, water, and chemical transfer systems. The BSPT male thread ensures a tight seal, while the push-in tube connections allow for straightforward integration in various industrial setups. Installation is quick and tool-free - simply apply PTFE tape and hand tighten.
Key Features & Benefits
- Durable reinforced polypropylene resists chemicals, pressure, and mechanical stress
- Male BSPT thread offers reliable sealing in fluid and pneumatic systems
- Rated to 14 bar at 20°C for high-pressure performance
- Operating temperature range from 4°C to +90°C
- Simple to fit with hand-tightening only - no tools required
- Ideal for splitting or diverting flow in plastic or metal piping systems
- Commonly used in agricultural, chemical, and fluid distribution applications
| Product Code | OD (mm) | M (Inch) | L (mm) | L1 (mm) |
| 371300 | 6 | 1/4 | 46.2 | 27.5 |
| 371301 | 12 | 1/4 | 57.7 | 40.3 |
| 371303 | 12 | 1/2 | 62.7 | 40.4 |
