M Connector
Useful Information
Technical Specification
- Manufacturer: Tefen
- Material: Reinforced Polypropylene
- Working Pressure: Up to 14 bar (at 20°C)
- Operating Temperature Range: 4°C to +90°C
- Thread Type: BSPT (Male)
- Installation: Hand tighten only; PTFE tape recommended
Description

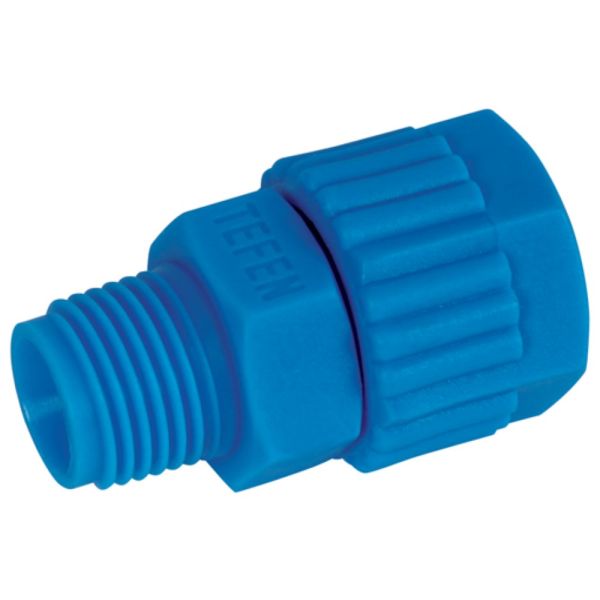

This male connector provides a secure and reliable connection between tubing and BSPT threaded components in a wide range of industrial fluid and pneumatic systems. Made from high-quality reinforced polypropylene, it delivers excellent chemical resistance and mechanical durability. Designed for straightforward hand installation, this fitting is ideal for use in tight spaces, offering a tight, leak-resistant seal when paired with PTFE tape. It suits various tube sizes and is commonly used across agricultural, chemical dosing, and general fluid transport applications.
Key Features & Benefits
- Straight male BSPT connection for tube-to-thread integration
- Reinforced polypropylene ensures long-lasting chemical and mechanical resistance
- Pressure rated to 14 bar at 20°C, ideal for high-performance systems
- Temperature range from 4°C to +90°C for broad environmental suitability
- Hand-tight installation simplifies fitting - no tools required
- Multiple tube sizes available, offering flexibility for different applications
- Used in chemical processing, irrigation, and pneumatic systems
| Prodct Code | ID (Inch) | ID (mm) | L (mm) |
| 371262 | 1/8 | 4 | 26.3 |
| 371263 | 3/16 | 5 | 31.7 |
| 371264 | 1/4 | 6 | 35.5 |
| 371265 | 5/16 | 8 | 41.4 |
| 371266 | 3/8 | 10 | 44.6 |
| 371267 | 1/2 | 12 | 46.3 |
| 371268 | - | 14 | 51.0 |
| 371269 | 5/8 | 16 | 53.9 |
| 371270 | 3/4 | 19 | 55.8 |
