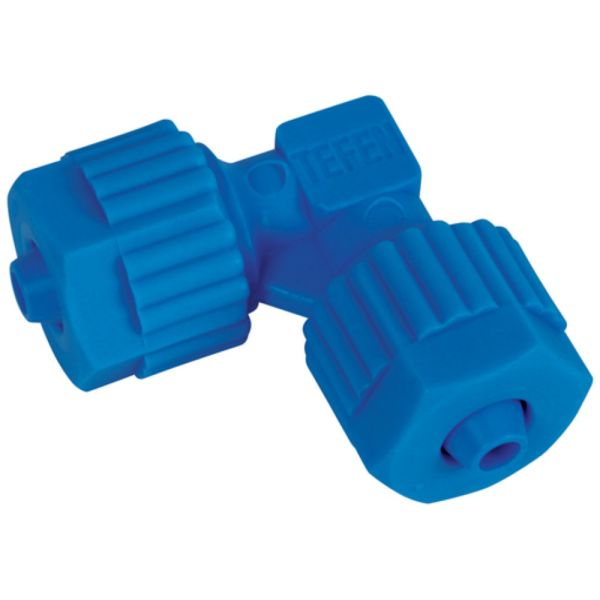

Elbow Tube x Tube
Useful Information
Technical Specification
- Manufacturer: Tefen
- Material: Reinforced Polypropylene
- Working Pressure: Up to 14 bar (at 20°C)
- Operating Temperature Range: 4°C to +90°C
- Connection Type: Tube x Tube (90° Elbow)
- Installation: Hand tighten only; PTFE tape not required for tube connections
Description
This 90° elbow connector enables secure and efficient right-angle connections between equal tube sizes, ideal for routing pipelines within tight or compact installations. Manufactured from reinforced polypropylene, it offers exceptional chemical resistance and mechanical reliability. Commonly used in pneumatic, fluid, and chemical systems, the fitting allows for quick, tool-free installation while maintaining a tight, durable seal.
Key Features & Benefits
- 90° elbow design for precise right-angle tube routing
- Reinforced polypropylene provides excellent chemical and impact resistance
- Pressure rated to 14 bar at 20°C for robust system integration
- Wide temperature range from 4°C to +90°C
- Simple hand-tight installation - no tools required
- Ideal for fluid distribution, air lines, and chemical processing setups
- Suitable for use in industrial, agricultural, and automation systems
| Product Code | OD (mm) | L (mm) |
| 371316 | 6 | 27.4 |
| 371317 | 8 | 27.4 |
| 371318 | 12 | 40.5 |
