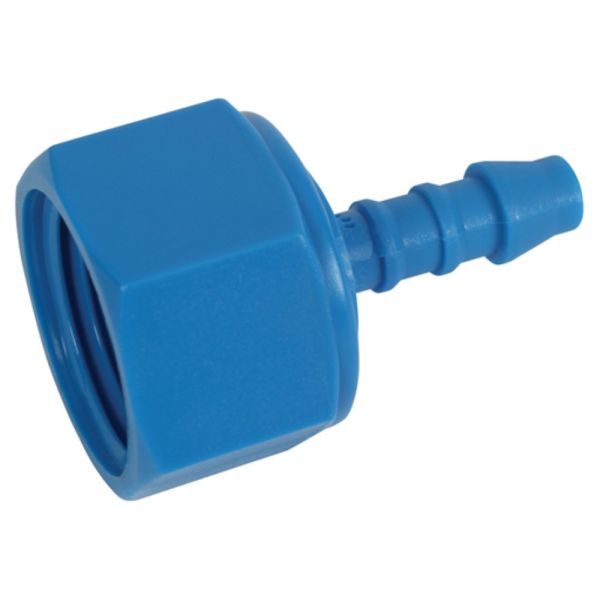

Swivel Nut x Hose Tail BSPT
Useful Information
Technical Specification
- Manufacturer: Tefen
- Material: Reinforced Polypropylene
- Thread Type: BSPT (British Standard Pipe Taper) – Female Swivel Nut
- Connection Type: Hose Tail x Swivel Nut
- Working Pressure: 14 bar (at 20°C)
- Operating Temperature Range: -20°C to +110°C
- Connection: Hand tighten only
- Thread Sealing: PTFE tape recommended for secure connections
- Conforms To: ISO 7.1, BS 21, DIN 2999
- Media Compatibility: Compressed air, water, oils, and general fluids
Description
This precision-engineered hose tail fitting is designed for fast, secure connections between flexible hose and BSPT threaded ports. The swivel nut provides enhanced assembly flexibility and reduces strain on hose lines. Manufactured from reinforced polypropylene, it is a lightweight, corrosion-resistant alternative to brass, ideal for pneumatic and low-pressure fluid transfer systems.
Key Features & Benefits
- Swivel nut allows for easier alignment and installation in confined spaces
- Hose tail provides secure connection to flexible tubing
- Reinforced polypropylene construction offers durability and chemical resistance
- Operates up to 14 bar at 20°C with a temperature range of -20°C to +110°C
- Compliant with ISO 7.1, BS 21, and DIN 2999 thread standards
- Suitable for air, water, oil, and general industrial fluids
- Lightweight alternative to brass fittings – cost-effective and easy to handle
- Hand tighten for quick installation - no tools needed
- Manufactured in Tefen’s certified facilities for assured quality
| Product Code | ID (Inch) | ID (mm) | F (Inch) | L (mm) | SW (mm) |
| 371140 | 1/8 | 4 | 1/8 | 27.5 | 13 |
| 371141 | 3/16 | 5 | 1/8 | 32 | 13 |
| 371142 | 1/8 | 4 | 1/4 | 31.7 | 17 |
| 371143 | 3/16 | 5 | 1/4 | 36.2 | 17 |
| 371144 | 1/4 | 6 | 1/4 | 37.3 | 17 |
| 371145 | 5/16 | 8 | 1/4 | 41.3 | 17 |
| 371146 | 3/16 | 5 | 3/8 | 36.0 | 20 |
| 371147 | 1/4 | 6 | 3/8 | 36.8 | 20 |
| 371148 | 5/16 | 8 | 3/8 | 40.8 | 20 |
| 371149 | 3/8 | 10 | 3/8 | 42.8 | 20 |
| 371150 | 1/4 | 6 | 1/2 | 39.5 | 24 |
| 371151 | 5/16 | 8 | 1/2 | 43.6 | 24 |
| 371152 | 3/8 | 10 | 1/2 | 43.6 | 24 |
| 371153 | 1/2 | 12 | 1/2 | 46.7 | 24 |
| 371154 | - | 14 | 1/2 | 48.9 | 24 |
| 371155 | 3/8 | 10 | 3/4 | 45.6 | 30 |
| 371156 | 1/2 | 12 | 3/4 | 46.5 | 30 |
| 371157 | 5/8 | 16 | 3/4 | 48.5 | 30 |
| 371158 | 3/4 | 19 | 3/4 | 49.3 | 30 |
