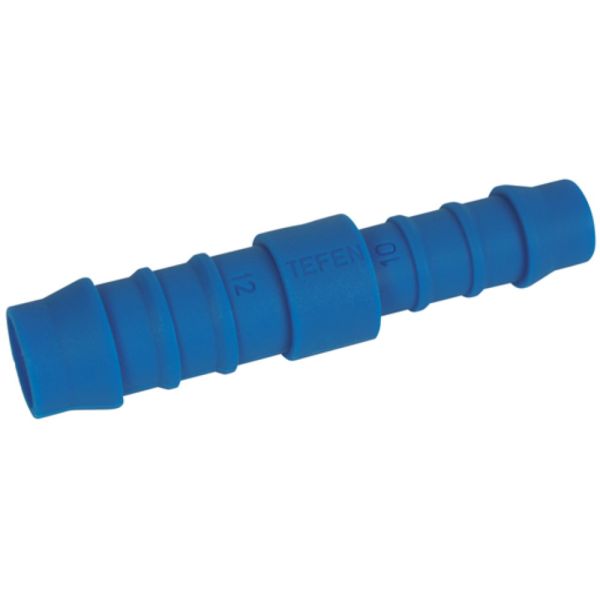

Reducing Hose Repairer
Useful Information
Technical Specification
- Manufacturer: Tefen
- Material: Reinforced Polypropylene
- Connection Type: Hose Tail x Hose Tail (Reducing Tube x Tube)
- Working Pressure: 14 bar (at 20°C)
- Operating Temperature Range: -20°C to +110°C
- Connection: Hand tighten only
- Thread Sealing: Not applicable – barbed ends ensure secure fit
- Media Compatibility: Compressed air, water, oils, and general-purpose fluids
- Conforms To: ISO 7.1, BS 21, DIN 2999
Description
Designed to repair or adapt flexible hose systems with differing internal diameters, this reducing hose repairer offers a reliable and secure connection between two hose sizes. Constructed from reinforced polypropylene, it delivers strong performance, excellent chemical resistance, and a lightweight, corrosion-resistant alternative to traditional brass fittings.
Key Features & Benefits
- Reduces between different hose internal diameters for versatile repair or connection
- Barbed ends ensure secure, leak-resistant fit without additional sealing
- Made from durable reinforced polypropylene for long service life
- Suitable for air, water, oil, and other fluid handling systems
- 14 bar pressure rating at 20°C and temperature range from -20°C to +110°C
- Lightweight design simplifies handling and installation
- Cost-effective and corrosion-resistant alternative to brass fittings
- Precision manufactured in Tefen’s certified facilities for assured quality
| Product Code | ID (Inch) | ID (mm) | ID1 (Inch) | ID1 (mm) | L (mm) |
| 371195 | 3/16 | 5 | 1/8 | 4 | 42.2 |
| 371196 | 1/4 | 6 | 1/8 | 4 | 45.7 |
| 371197 | 1/4 | 6 | 3/16 | 5 | 50.6 |
| 371198 | 5/16 | 8 | 3/16 | 5 | 54.4 |
| 371199 | 5/16 | 8 | 1/4 | 6 | 56.3 |
| 371200 | 3/8 | 10 | 1/4 | 6 | 58.9 |
| 371201 | 3/8 | 10 | 5/16 | 8 | 62.0 |
| 371202 | 1/2 | 12 | 5/16 | 8 | 63.8 |
| 371203 | 1/2 | 12 | 3/8 | 10 | 65.3 |
| 371204 | - | 14 | 3/8 | 10 | 69.1 |
| 371205 | - | 14 | 1/2 | 12 | 69.9 |
| 371206 | 5/8 | 16 | 1/2 | 12 | 70.3 |
| 371207 | 5/8 | 16 | - | 14 | 71.7 |
| 371208 | 3/4 | 19 | - | 14 | 72.7 |
| 371209 | 3/4 | 19 | 5/8 | 16 | 72.7 |
