Reducing Elbow Hose Connector
Useful Information
Technical Specification
- Manufacturer: Tefen
- Material: Reinforced Polypropylene
- Connection Type: Reducing Hose Tail × Hose Tail (90° Elbow, Tube x Tube)
- Working Pressure: 14 bar (at 20°C)
- Operating Temperature Range: -20°C to +110°C
- Connection: Hand tighten only
- Thread Sealing: Not applicable – barbed ends create secure, leak-resistant fit
- Media Compatibility: Compressed air, water, oils, and general-purpose fluids
Description

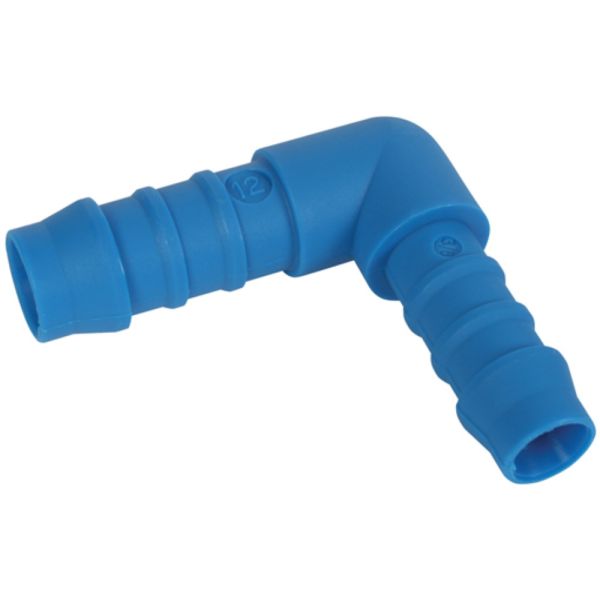

This reducing elbow connector provides a 90° transition between two flexible hoses of different diameters, offering a compact and secure solution for angled connections. Manufactured from high-quality reinforced polypropylene, it is ideal for air, fluid, and chemical systems where strength, chemical resistance, and space-saving installation are required.
Key Features & Benefits
- 90° reducing elbow for connecting hoses of different internal diameters
- Barbed hose tails ensure secure, leak-free fit without clamps or sealant
- Made from reinforced polypropylene for superior strength and chemical resistance
- Rated to 14 bar at 20°C with a temperature range of -20°C to +110°C
- Suitable for use with air, water, oils, and various industrial fluids
- Lightweight and corrosion-resistant alternative to metal fittings
- Quick and easy tool-free installation - hand tighten only
- Manufactured to stringent standards in Tefen’s certified production facilities
| Prodct Code | ID (Inch) | ID (mm) | L (mm) |
| 371262 | 1/8 | 4 | 26.3 |
| 371263 | 3/16 | 5 | 31.7 |
| 371264 | 1/4 | 6 | 35.5 |
| 371265 | 5/16 | 8 | 41.4 |
| 371266 | 3/8 | 10 | 44.6 |
| 371267 | 1/2 | 12 | 46.3 |
| 371268 | - | 14 | 51.0 |
| 371269 | 5/8 | 16 | 53.9 |
| 371270 | 3/4 | 19 | 55.8 |
