Hose Repairer Tube x Tube
Useful Information
Technical Specification
- Manufacturer: Tefen
- Material: Reinforced Polypropylene
- Connection Type: Hose Tail x Hose Tail (Tube x Tube)
- Working Pressure: 14 bar (at 20°C)
- Operating Temperature Range: -20°C to +110°C
- Connection: Hand tighten only
- Thread Sealing: Not required – barbed ends ensure tight seal
- Media Compatibility: Compressed air, water, oils, and general fluids
- Conforms To: ISO 7.1, BS 21, DIN 2999
Description

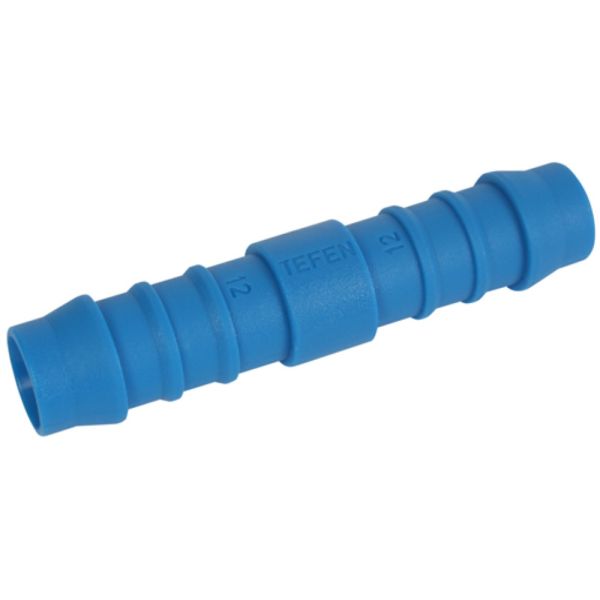

This robust hose repairer is designed to quickly and securely join two sections of flexible tubing with the same internal diameter. Made from reinforced polypropylene, it provides a lightweight, corrosion-resistant alternative to brass while maintaining excellent strength and chemical resistance. Ideal for repairing or extending hose assemblies in compressed air, water, and fluid systems.
Key Features & Benefits
- Tube-to-tube fitting designed for joining or repairing equal diameter hoses
- Barbed ends provide a secure grip and leak-free seal without thread sealant
- Reinforced polypropylene for strength, durability, and chemical resistance
- Withstands pressures up to 14 bar at 20°C
- Operating temperature range from -20°C to +110°C for varied environments
- Suitable for water, air, oil, and general-purpose industrial fluids
- Lightweight, cost-effective alternative to brass fittings
- Quick and easy to install – ideal for maintenance and repair tasks
- Precision-moulded by Tefen in certified production facilities
| Product Code | ID (mm) | ID (Inch) | L (mm) |
| 371186 | 4 | 1/8 | 36.6 |
| 371187 | 5 | 3/16 | 47 |
| 371188 | 6 | 1/4 | 52.2 |
| 371189 | 8 | 5/16 | 59.3 |
| 371190 | 10 | 3/8 | 63 |
| 371191 | 12 | 1/2 | 66 |
| 371192 | 14 | - | 71.8 |
| 371193 | 16 | 5/8 | 72.5 |
| 371194 | 16 | 3/4 | 73.5 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
