Elbow Hose Connector Tube x Tube
Useful Information
Technical Specification
- Manufacturer: Tefen
- Material: Reinforced Polypropylene
- Connection Type: Tube x Tube (90° Elbow, Hose Tail)
- Working Pressure: 14 bar (at 20°C)
- Operating Temperature Range: -20°C to +110°C
- Connection: Hand tighten only
- Thread Sealing: Not required – barbed ends create secure seal
- Media Compatibility: Compressed air, water, oils, and general-purpose fluids
Description

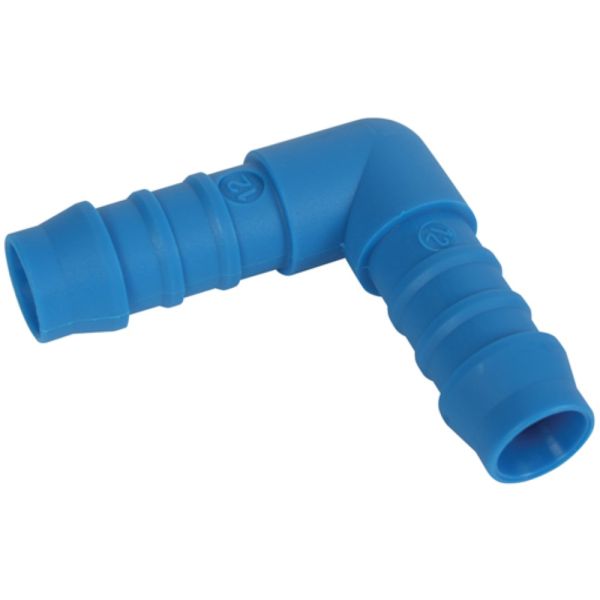

This 90° elbow connector provides an efficient way to join two flexible hoses of equal diameter at a right angle, helping to reduce hose strain and simplify routing in compact systems. Manufactured from reinforced polypropylene, it combines mechanical strength with excellent resistance to chemicals, making it ideal for fluid, air, and chemical applications in industrial and agricultural environments.
Key Features & Benefits
- 90° elbow design facilitates directional changes in hose runs
- Equal hose tail connections for quick and secure tube-to-tube assembly
- Barbed ends ensure tight grip without the need for clamps or sealant
- Withstands working pressures up to 14 bar at 20°C
- Wide operating temperature range from -20°C to +110°C
- Suitable for compressed air, water, oils, and general fluids
- Lightweight and corrosion-resistant - a reliable alternative to metal fittings
- Easy hand-tighten installation - no tools required
- Produced to high standards in Tefen’s certified manufacturing facilities
| Product Code | ID (Inch) | ID (mm) | L (mm) |
| 371262 | 1/8 | 4 | 26.3 |
| 371263 | 3/16 | 5 | 31.7 |
| 371264 | 1/4 | 6 | 35.5 |
| 371265 | 5/16 | 8 | 41.4 |
| 371266 | 3/8 | 10 | 44.6 |
| 371267 | 1/2 | 12 | 46.3 |
| 371268 | - | 14 | 51.0 |
| 371269 | 5/8 | 16 | 53.9 |
| 371270 | 3/4 | 19 | 55.8 |
