Synthetic Rubber Spring Rewind
Technical Specification
- Hose Material: Synthetic rubber
- Construction: Heavy-duty steel with corrosion-resistant powder coating
- Hose Length: 15m
- Inside Diameter: 3/8" or 1/2"
- Maximum Working Pressure: 20 bar (290 psi)
- Inlet & Outlet Connections: 3/8" or 1/2" BSPP Female
- Mounting Options: Wall, floor, ceiling, pit
- Reel Dimensions: 500mm (W) x 500mm (H) x 200mm (D)
Description

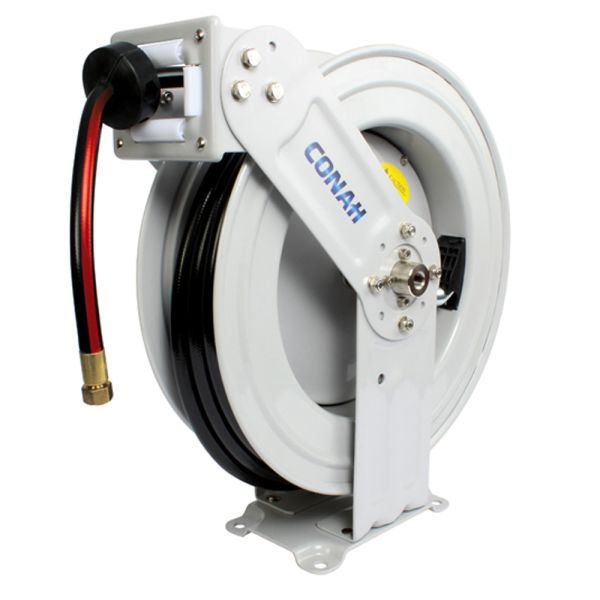

Designed specifically for fuel delivery in demanding industrial settings, this mountable hose reel offers strength, safety, and ease of use. The synthetic rubber hose provides flexibility and durability under pressure, while the heavy-duty steel frame offers reliable structural support. Featuring a spring rewind mechanism for safe and efficient hose retraction, the unit also includes four-direction non-snag rollers to reduce wear and improve longevity. An adjustable guide arm allows for versatile installation across various mounting positions, making it a highly adaptable solution for professional fuel handling applications.
Key Features & Benefits
- Fuel-compatible synthetic rubber hose for industrial use
- Heavy-duty ribbed steel plate ensures robust structural integrity
- Centrally located spring mechanism delivers consistent rewind action
- Four-direction non-snag rollers protect against hose abrasion
- Ball bearing swivel joint reduces friction and wear
- Adjustable guide arm supports flexible mounting orientations
- Powder-coated frame offers corrosion resistance in harsh environments
- Supplied complete with hose and ready for immediate use
| Product Code | Hose Length/Capacity (m) | Hose Internal Bore (inch) | Hose Material | Max. Working Pressure Bar (psi) | Inlet Connection (inch) | Outlet Connection (inch) | Includes Hose? (Yes/No) | Application |
| 374920 | 15 | 3/8 | Synthetic Rubber | 20 (290) | 3/8 Female BSP | 3/8 Female BSP | Yes | Fuel |
| 374926 | 15 | 1/2 | Synthetic Rubber | 20 (290) | 1/2 Female BSP | 1/2 Female BSP | Yes | Fuel |
