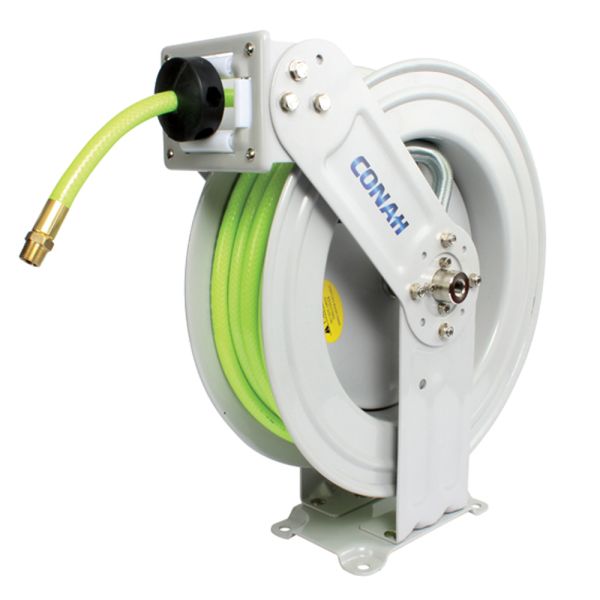

Hi-Vis Hose Spring Rewind
Technical Specification
Hose Material: Hi-vis reinforced PVC (RPVC)
Construction: Heavy-duty steel with corrosion-resistant powder coating
Hose Lengths Available: 15m (3/8") and 20m (1/2")
Maximum Working Pressure: 20 bar (290 psi)
Inlet Connection: Female BSPT
Outlet Connection: Male BSPT Taper
Mounting Options: Wall, floor, ceiling, pit
Reel Dimensions: 500mm (W) x 500mm (H) x 200mm (D)
Description
Engineered for demanding industrial environments, this heavy-duty reel delivers reliable air and water conveyance with enhanced visibility and durability. The steel body is built with a ribbed plate structure and finished with a corrosion-resistant powder coating to ensure long service life. A spring-loaded rewind mechanism enables controlled and safe hose retraction, while the adjustable guide arm offers flexible mounting in multiple positions. With four-direction non-snag rollers and a precision-engineered swivel joint, this unit significantly reduces hose wear and friction, improving operational efficiency.
Key Features & Benefits
- High-visibility RPVC hose improves onsite safety
- Heavy ribbed steel plate ensures solid structural support
- Spring located centrally for stable and consistent rewind action
- Four-direction non-snag rollers reduce hose abrasion and wear
- Ball bearing swivel joint minimises friction for longer service life
- Adjustable guide arm enables wall, ceiling, floor, and pit mounting
- Corrosion-resistant powder coating suits diverse environments
- Includes hose, ready for air and water applications
| Product Code | Hose Length/Capacity (m) | Hose Internal Bore (inch) | Hose Material | Max. Working Pressure Bar (psi) | Inlet Connection (inch) | Outlet Connection (inch) | Includes Hose? (Yes/No) | Application |
| 374919 | 15 | 3/8 | Hi-Vis (RPVC) | 20 (290) | 3/8 Female BSP | 3/8 Male BSP Taper | Yes | Air & Water |
| 374925 | 20 | 1/2 | Hi-Vis (RPVC) | 20 (290) | 1/2 Female BSP | 1/2 Male BSP Taper | Yes | Air & Water |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
