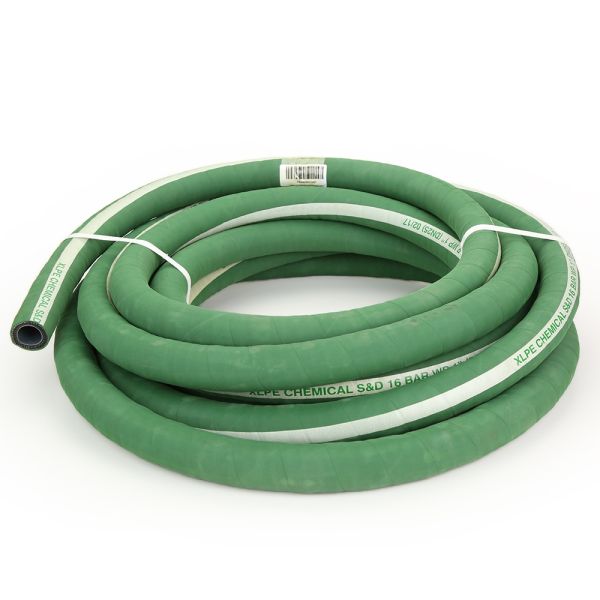

XLPE Chemical Hose
Useful Information
Technical Specification
- Material: Cross-linked polyethylene (XLPE) with black rubber backing
- Lining: Smooth, clear XLPE
- Reinforcement: High tensile textile cord, steel wire helix, and anti-static wire
- Cover: Green, smooth cloth impression tape
- Temperature Range: -30°C to +90°C
- Maximum Working Pressure: 16 bar
- Bursting Pressure: 48 bar
- Max Vacuum: 0.9 bar
- Colour: Green
- Lengths Available: 10m and 40m coils
Description
Designed for the reliable transfer of a wide range of corrosive chemicals, this industrial hose offers robust performance under both suction and delivery operations. The clear XLPE inner lining ensures chemical compatibility, while the steel wire helix and textile cord provide strength and stability under pressure. Anti-static wire protection is built in for added safety in chemical transfer. The green cloth impression cover is highly resistant to ozone, weathering, and abrasion, making it suitable for external use with storage tanks, tankers, and other demanding applications.
Key Features & Benefits
- Cross-linked polyethylene liner for superior chemical resistance
- Reinforced with high tensile textile cord and embedded steel wire helix
- Includes anti-static wire for safe chemical transfer applications
- Smooth bore ensures consistent flow and easy cleaning
- Withstands demanding suction and delivery operations
- Excellent resistance to ozone, UV, weathering, and abrasion
- Wide temperature operating range: -30°C to +90°C
- Supplied in 10m and 40m coil options for flexible installation
- Green, cloth impression finish for industrial durability
| Product Code | Internal Diameter (inch) | Outer Diameter (mm) | Working Pressure (bar) | Bursting Pressure (bar) | Bend Radius (mm) | Length (m) | Weight (kg) |
| 378377 | 1/2 | 25 (±1) | 16 | 48 | 65 | 10 | 4.8 |
| 378378 | 1/2 | 25 (±1) | 16 | 48 | 65 | 40 | 19.2 |
| 378379 | 3/4 | 32 (±1,2) | 16 | 48 | 95 | 10 | 7 |
| 378380 | 3/4 | 32 (±1,2) | 16 | 48 | 95 | 40 | 28 |
| 378381 | 1 | 39 (±1,2) | 16 | 48 | 125 | 10 | 9.9 |
| 378382 | 1 | 39 (±1,2) | 16 | 48 | 125 | 40 | 39.6 |
| 378383 | 1 1/4 | 47 (±1,2) | 16 | 48 | 160 | 10 | 12.1 |
| 378384 | 1 1/4 | 47 (±1,2) | 16 | 48 | 160 | 40 | 48.4 |
| 378385 | 1 1/2 | 53 (±1,2) | 16 | 48 | 190 | 10 | 13.8 |
| 378386 | 1 1/2 | 53 (±1,2) | 16 | 48 | 190 | 40 | 55.2 |
| 378387 | 2 | 67 (±1,2) | 16 | 48 | 255 | 10 | 20 |
| 378388 | 2 | 67 (±1,2) | 16 | 48 | 255 | 40 | 80 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
