Hi-Vis Hose
Technical Specification
- Material: Flexible polyvinyl chloride (PVC) reinforced with polyester yarn
- Colour: High-visibility fluorescent yellow with white inner lining
- Operating Temperature Range: -20°C to +80°C
- Maximum Working Pressure: 20 bar
- Burst Pressure: 60 bar
- Bend Radius: From 28mm to 55mm (dependent on size)
- Potable Water Use: Suitable for drinking water applications
- Flame Performance: Self-extinguishing
- Standards Compliance: BS EN ISO 5774 & EN471:2003 (5.1, 5.1.1, Table 2)
- Lengths Available: 30m, 50m, and 100m coils

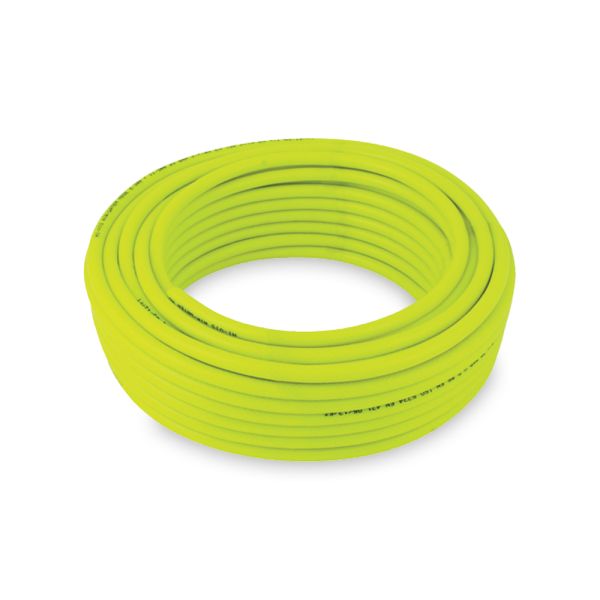

Description
Designed for maximum visibility and flexibility, this hose is manufactured from fluorescent yellow PVC with a reinforced polyester yarn construction. It delivers excellent performance in demanding environments while maintaining compliance with key Health & Safety standards for chromaticity and luminance.
This versatile hose is rated for pressures up to 20 bar and remains fully flexible across a wide temperature range, making it ideal for both indoor and outdoor use. Whether used in industrial washdown, vending, window cleaning, forecourt operations, or public event setups, it offers both durability and peace of mind.
Its white inner lining ensures suitability for potable water use, while the outer layer resists UV exposure and supports long-term use in high-traffic or safety-critical areas.
Key Features & Benefits
- Highly visible fluorescent yellow for enhanced on-site safety
- Fully compliant with BS EN ISO 5774 & EN471:2003 for chromaticity and luminance
- 20 bar pressure rating supports robust industrial use
- Flexible PVC construction with polyester reinforcement for strength
- Flame-retardant and self-extinguishing for added safety
- Suitable for potable drinking water, food-grade applications, and general use
- UV stabilised for reliable outdoor performance
- Available in multiple diameters and coil lengths to suit your application
- Wide range of uses: industrial, commercial, public events, and hygiene-critical environments
- Maintains flexibility from -20°C to +80°C
| Product Code | Internal Diameter (mm) | Outer Diameter (mm) | Max. Operating Pressure (bar) | Burst Pressure (bar) | Bend Radius (mm) | Length (m) |
| 371038 | 6.3 | 11.5 | 20 | 60 | 28 | 30 |
| 371042 | 6.3 | 11.5 | 20 | 60 | 28 | 50 |
| 371046 | 6.3 | 11.5 | 20 | 60 | 28 | 100 |
| 371039 | 8 | 13.5 | 20 | 60 | 34 | 30 |
| 371043 | 8 | 13.5 | 20 | 60 | 34 | 50 |
| 371047 | 8 | 13.5 | 20 | 60 | 34 | 100 |
| 371040 | 10 | 16 | 20 | 60 | 40 | 30 |
| 371044 | 10 | 16 | 20 | 60 | 40 | 50 |
| 371048 | 10 | 16 | 20 | 60 | 40 | 100 |
| 371041 | 12.5 | 18.5 | 20 | 60 | 55 | 30 |
| 371045 | 12.5 | 18.5 | 20 | 60 | 55 | 50 |
| 371049 | 12.5 | 18.5 | 20 | 60 | 55 | 100 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
