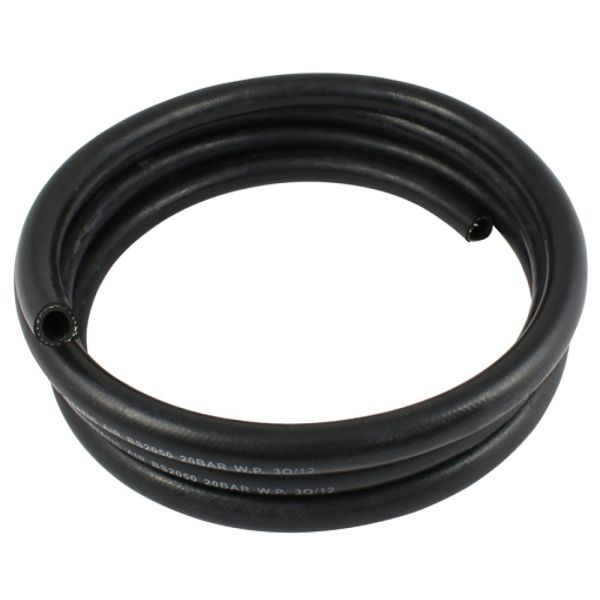

Anti-Static Hose
Useful Information
Technical Specification
- Lining Material: Electrically conductive SBR rubber
- Cover Material: Smooth black SBR rubber
- Working Pressure: 20 bar
- Burst Pressure: 60 bar
- Temperature Range: -20°C to +80°C
- Electrical Resistance: Min 3 × 10³ Ω/m, Max 10⁶ Ω/m
- Conformance: BS2050:1978
- Sizes Available:
- 1/4" to 1" internal diameter
- Length: 20m
Description
Designed for environments where electrostatic discharge poses a risk, this hose provides excellent anti-static performance through its conductive SBR rubber lining and cover. It’s ideal for compressed air or water applications, particularly in spark-free zones such as refineries, offshore platforms, and gas installations. With a robust 20 bar operating pressure and a high burst threshold of 60 bar, it ensures safe operation in demanding industrial conditions. The hose’s extruded construction supports durability and consistent performance across a wide temperature range.
Key Features & Benefits
- Fully compliant with BS2050:1978 for safe use in anti-static applications
- Durable all-rubber construction for longevity in harsh environments
- Suitable for use in compressed air and water systems
- Excellent choice for offshore oil, gas, and refinery settings
- Wide range of diameters and coil lengths for flexible installation
- Stable performance in temperatures from -20°C to +80°C
| Dimensions and Pressure Ratings | ||||
| Product Code | Internal Diameter (inch) | Outer Diameter (mm) | Pressure Rating (bar) | Length (m) |
| 372539 | 1/4 | 14 | 20 | 20 |
| 372540 | 1/4 | 14 | 20 | 100 |
| 372541 | 5/16 | 16 | 20 | 20 |
| 372542 | 5/16 | 16 | 20 | 100 |
| 372543 | 3/8 | 18 | 20 | 20 |
| 372544 | 3/8 | 18 | 20 | 100 |
| 372545 | 1/2 | 22 | 20 | 20 |
| 372546 | 1/2 | 22 | 20 | 100 |
| 372547 | 5/8 | 26 | 20 | 20 |
| 372548 | 5/8 | 26 | 20 | 100 |
| 372549 | 3/4 | 30 | 20 | 20 |
| 372550 | 3/4 | 30 | 20 | 60 |
| 372551 | 1 | 36 | 20 | 20 |
| 372552 | 1 | 36 | 20 | 60 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
