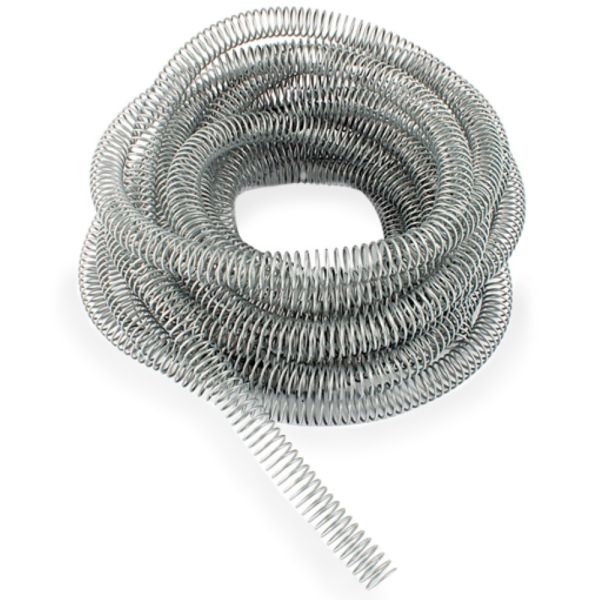

Galvanised Steel Spring Hose Guard
Useful Information
Technical Specification
- Material: Galvanised steel
- Coil length: 10 metres
- Internal diameters: 18mm to 70mm
- Wall thickness: 1.6mm to 3.2mm (varies by size)
- Construction: High tensile open-coil spring steel
- Application: External hose protection against abrasion and crushing
Description
Providing robust external protection, this steel hose guard is designed to shield hoses from crush damage and abrasive wear. Formed from high tensile spring steel, it retains flexibility while reinforcing the integrity of the hose beneath. The galvanised finish enhances corrosion resistance, making it suitable for both indoor and outdoor applications. Economical yet durable, it’s an ideal solution for extending the service life of hydraulic hoses and other critical assemblies in demanding environments.
Key Features & Benefits
- Durable Construction: Galvanised high tensile steel offers strength with corrosion protection
- Crush & Abrasion Resistant: Protects hoses in high-wear applications
- Flexible Design: Open-coil structure allows bend radius without compromising support
- Easy to Fit: Supplied in 10m coils for convenient on-site application
- Cost-Effective Protection: Extends hose life and reduces downtime from external damage
- Multiple Sizes Available: Range of internal diameters from 18mm to 70mm
| Product Code | Internal Diameter (mm) | Wall Thickness (mm) |
| 373749 | 18 | 1.6 |
| 373750 | 20 | 1.6 |
| 373751 | 22 | 2.0 |
| 373752 | 24 | 2.0 |
| 373753 | 25 | 2.0 |
| 373754 | 26 | 2.0 |
| 373755 | 29 | 2.0 |
| 373756 | 31 | 3.2 |
| 373757 | 33 | 3.2 |
| 373758 | 37 | 3.2 |
| 373759 | 41 | 3.2 |
| 373760 | 43 | 3.2 |
| 373761 | 45 | 3.2 |
| 37362 | 49 | 3.2 |
| 373763 | 51 | 3.2 |
| 373764 | 54 | 3.2 |
| 373765 | 56 | 3.2 |
| 373766 | 60 | 3.2 |
| 373767 | 63 | 3.2 |
| 373768 | 70 | 3.2 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
