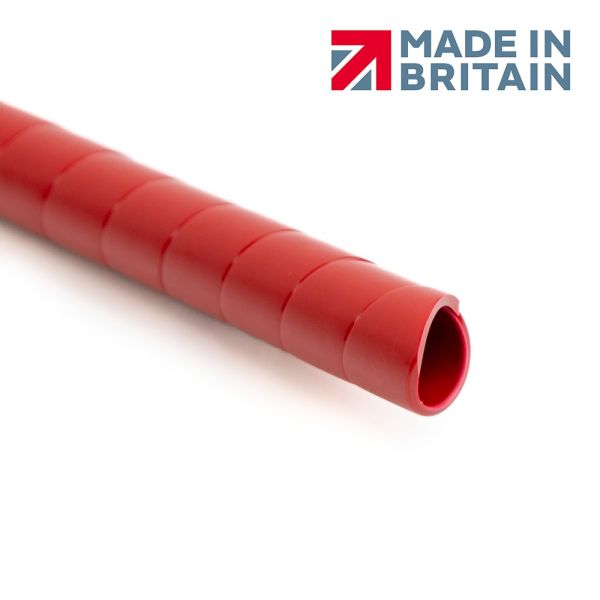

Engineered to provide efficient and reliable hose protection, this red spiral wrap is an ideal solution for shielding hydraulic and pneumatic lines from abrasion, impact, and wear. Its flexible HDPE construction ensures quick and simple installation - without the need for tools - on both individual hoses and bundled assemblies. A cost-effective way to extend hose service life while reducing downtime and maintenance costs.
Key Features & Benefits
Tool-Free Installation: Easily wraps around hoses in situ, saving time and effort
Multi-Hose Compatibility: Suitable for individual or multiple hose groupings
Robust HDPE Construction: Delivers excellent resistance to shocks and mechanical wear
Broad Temperature Range: Reliable performance from -40°C to +138°C
Fluid Compatible: Suitable for contact with hydraulic fluids, including glycol and phosphate esters
Convenient Packaging: Supplied boxed for safe storage and easy dispensing
Technical Data
SKU
Size Range (mm)
External Diameter (mm)
Wall Thickness (mm)
Weight Per Coil (kg)
Coil Length (m)
490919
11.5-16
16
1.5
2.9
50
490920
14-20
20
1.8
5.1
50
490921
20-25
25
2
6.4
50
490922
25-32
32
2.4
11.5
50
490923
32-40
40
2.4
13.4
50
490924
38-50
50
3
8.5
20
490925
50-63
63
3.5
12.6
20
490926
63-75
75
3.8
16.3
20
Downloads
Copely HDPE Spiral Wrap Techical Datasheet
Copely Hose Chemical Resistance Chart
