Engineered for secure and rapid hose connections, this plated double lock claw coupling offers robust performance in compressed air systems. Its design ensures compatibility with standard European claw systems, delivering reliable sealing and swift coupling in demanding industrial applications. The female BSPP thread allows straightforward connection to male-threaded fittings, while the zinc-plated finish enhances corrosion resistance and service life.
Supplied with a Nitrile seal. Replacements and a steam-resistant Neoprene alternative can be found here.
Please note, this fitting may be supplied in a silver colour.
Key Features & Benefits
Double claw locking for secure, leak-resistant connections
BSPP female thread ensures compatibility with standard pipe threads
Zinc plating increases durability in harsh environments
Quick-connect functionality speeds up installation and maintenance
Ideal for construction, agriculture, and general industrial use
Interchangeable with common European claw coupling systems
SKU

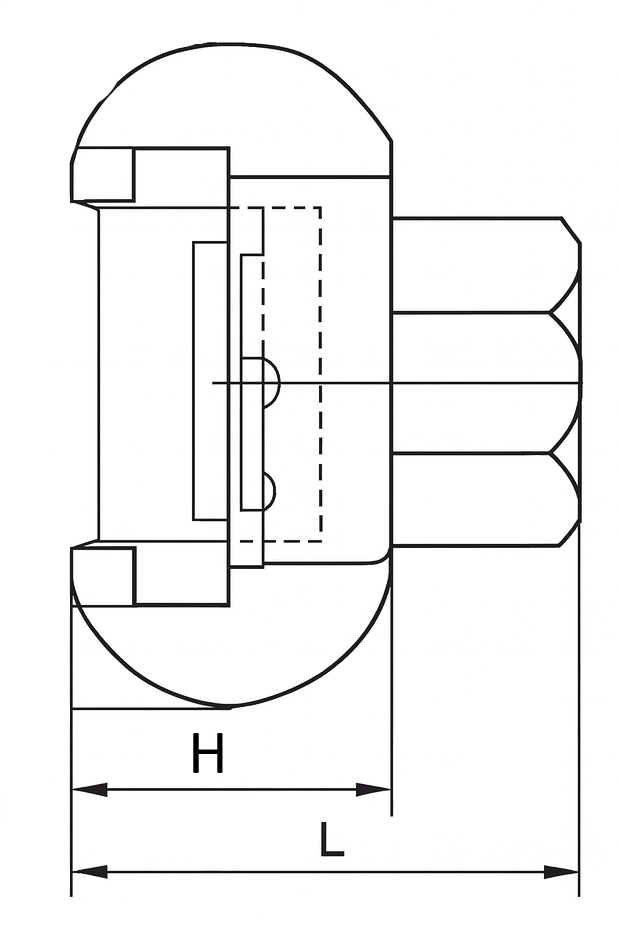

Size (inch)
L (mm)
H (mm)
Claw Distance (mm)
371449
1/4"
36
22
42
371450
3/8"
37
22
42
371451
1/2"
37
28
42
371452
3/4"
40
32
42
371453
1"
40
40
42
371454
1 1/4"
40
45
42
