Ideal for flexible hose systems, this Type C lever coupling is designed for fast and efficient connection in fluid handling setups. The barbed hose tail ensures a secure grip within the hose tubing, while the camlock mechanism allows for quick coupling and decoupling without tools. Built from corrosion-resistant aluminium and fitted with a Buna seal, it supports medium-pressure applications across industrial and commercial sectors.
Supplied with a Buna seal, other seal materials and replacements are available here.
Quick-release camlock design allows for tool-free connection
Rugged aluminium construction ensures long-lasting performance
Buna seal enhances sealing reliability in various applications
Widely used in washdown, fluid transfer, and agricultural setups
SKU
A (mm)
B (mm)
D (mm)
E (mm)
Pressure (psi)
358297
8
70
14
29
250
358298
14
80
21.5
33.2
250
358299
19.5
94.9
27.4
39.9
250
358300
25.3
102.5
34.1
45.5
250
358301
36.8
116.5
39.6
46
250
358302
43
134.5
52.4
52.5
150
358303
56
142.5
66.6
55.5
150
358304
66.2
143
77.8
58
125
358305
91.8
162.5
103.2
59
125
358306
146
191
155
67
75

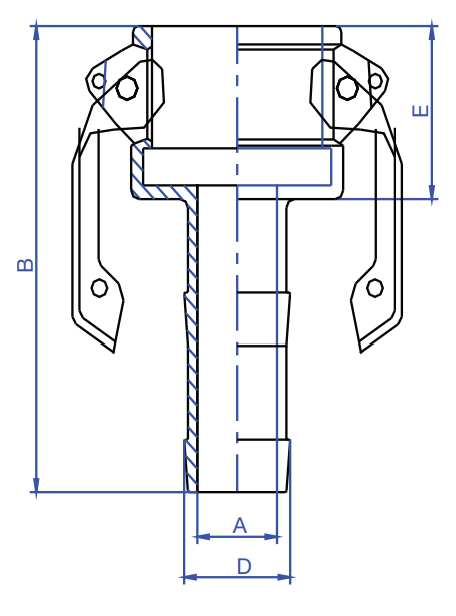

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
